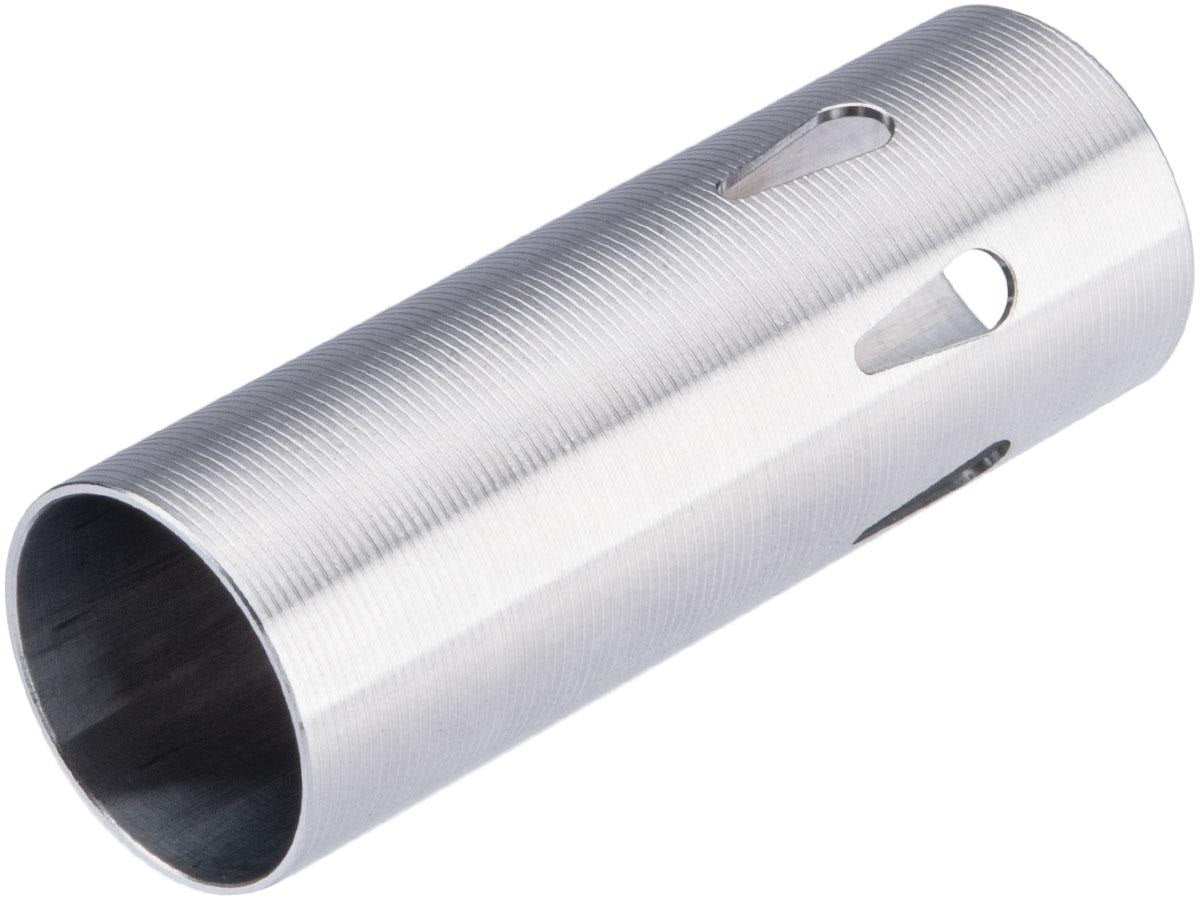

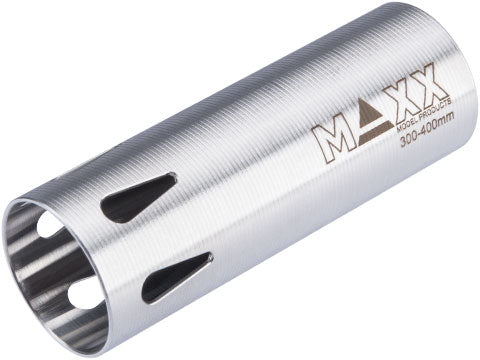

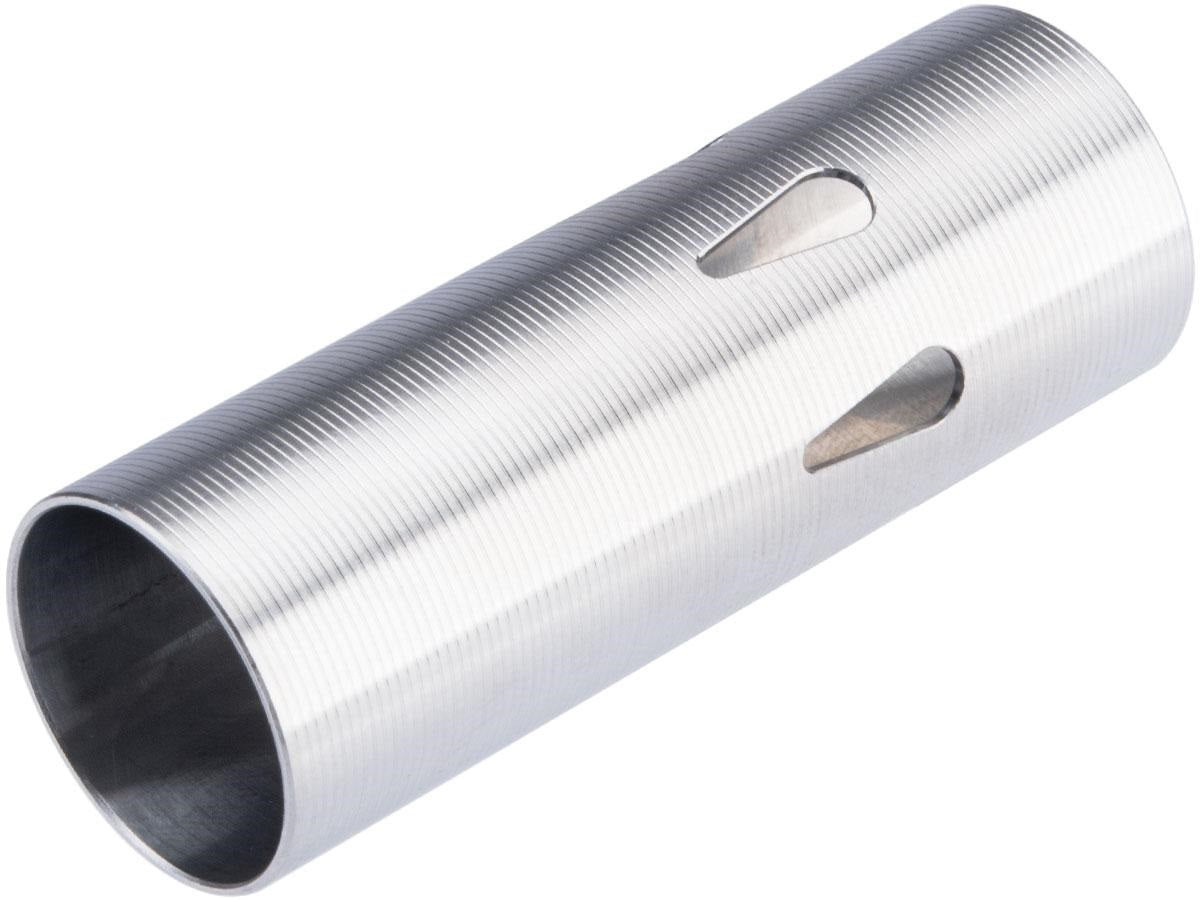

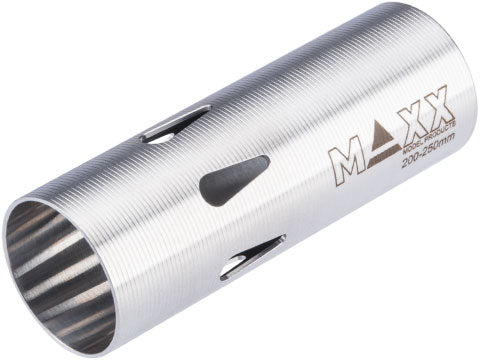

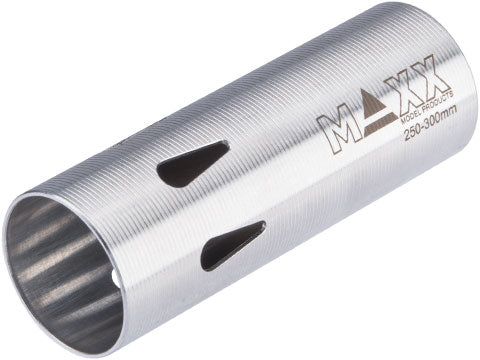

Maxx Model CNC Hardened Stainless Steel Airsoft AEG Cylinder

Features

• Precisely machined to ensure consistent air compression and improve durability
• Made of high strength stainless steel
• High polished internal surface to reduce friction and wear to maximize performance and durability
• Compatible with most standard airsoft AEG gearboxes

CNC Hardened Stainless Steel Cylinder is precisely machined to ensure consistent air compression and improve durability for most standard airsoft AEG gearboxes.

The Cylinder is made of high strength stainless steel with high polished internal surface to reduce friction and wear to maximize performance and durability.

Manufacturer: Maxx Model

Specifications:

Overall Length: 72.15mm
Compatibility: For most Standard Length Airsoft AEG Gearboxes
Material: CNC Machined Stainless Steel

Disclaimer: Recommended for users with Airsoft gearbox experience.
Note: Don't forget! When installing the cylinder, the ports should always face towards the spring guide!

What Are Type 0, 1, 2, and 3 cylinders?

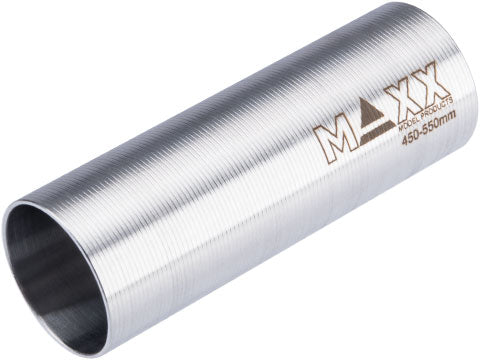

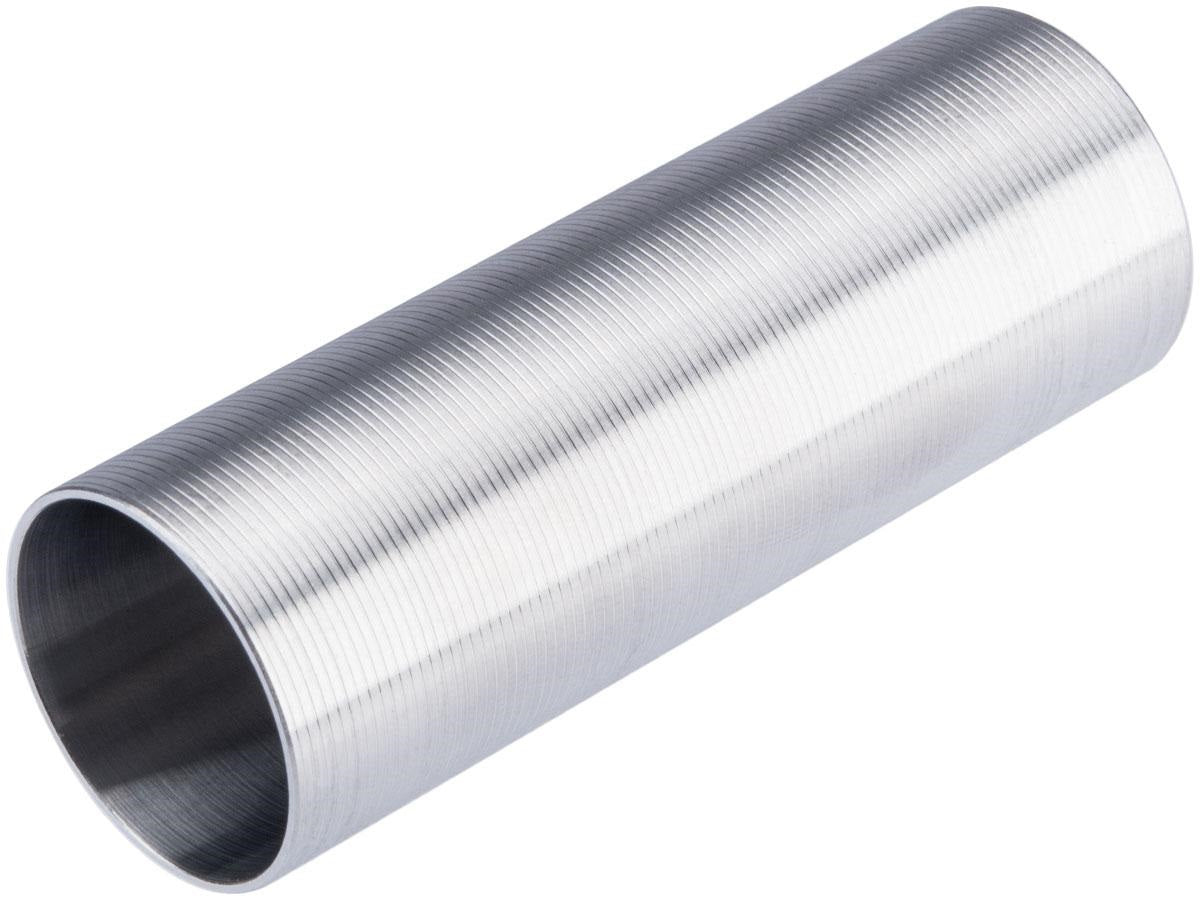

• Type 0: Type 0 Cylinders are full volume cylinders that use all the amount of air in the cylinder to propel a BB forward. Works best with 363mm to 550mm inner barrel lengths as that amount of air will be needed to push bbs farther in Rifle and DMR-style builds.

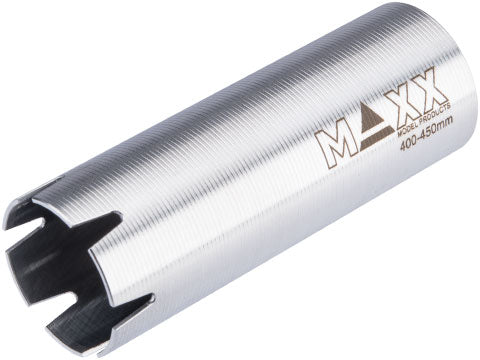

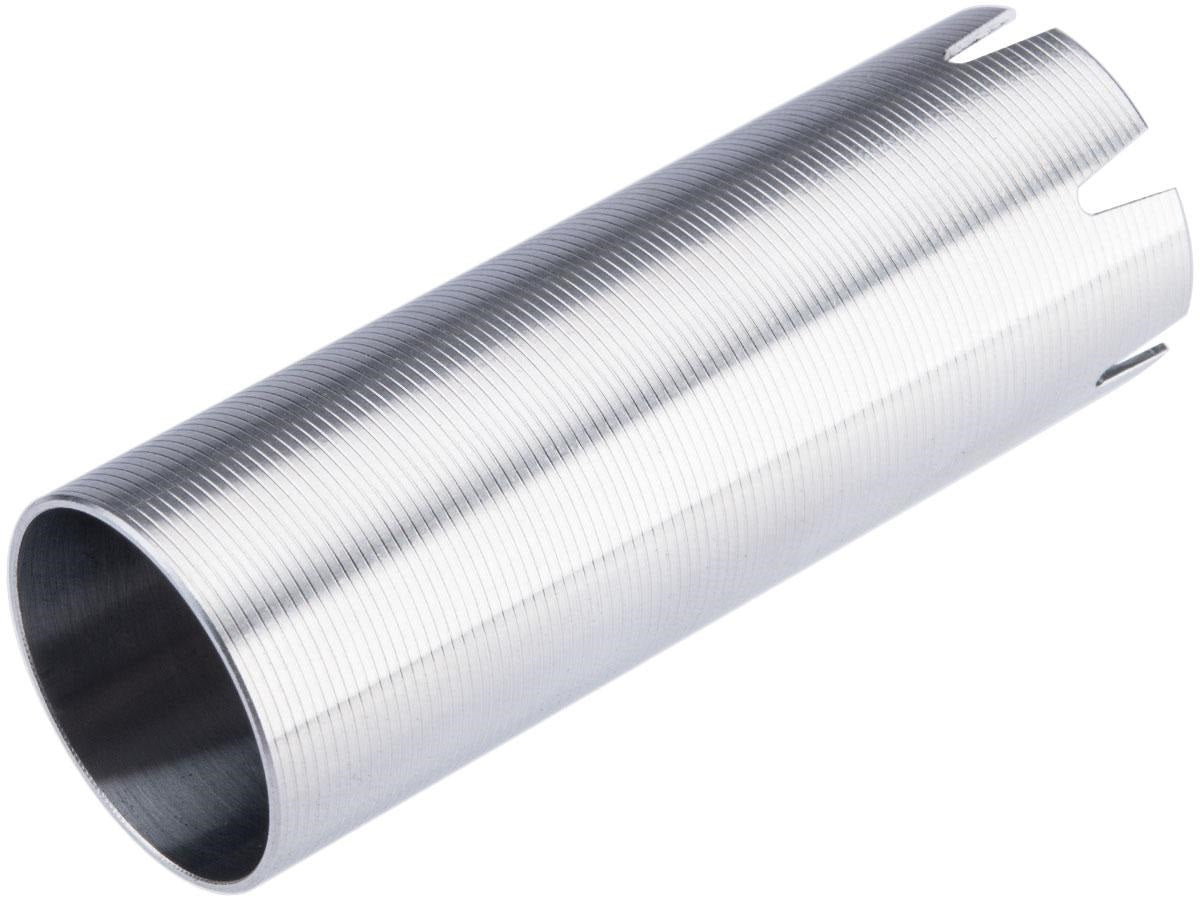

• Type 1: Type 1 Cylinders are ported cylinders that are cut right at the edges of a cylinder to utilize a portion of the full amount of air volume. Works best with 318mm to 510mm inner barrel lengths for Carbine-like builds.

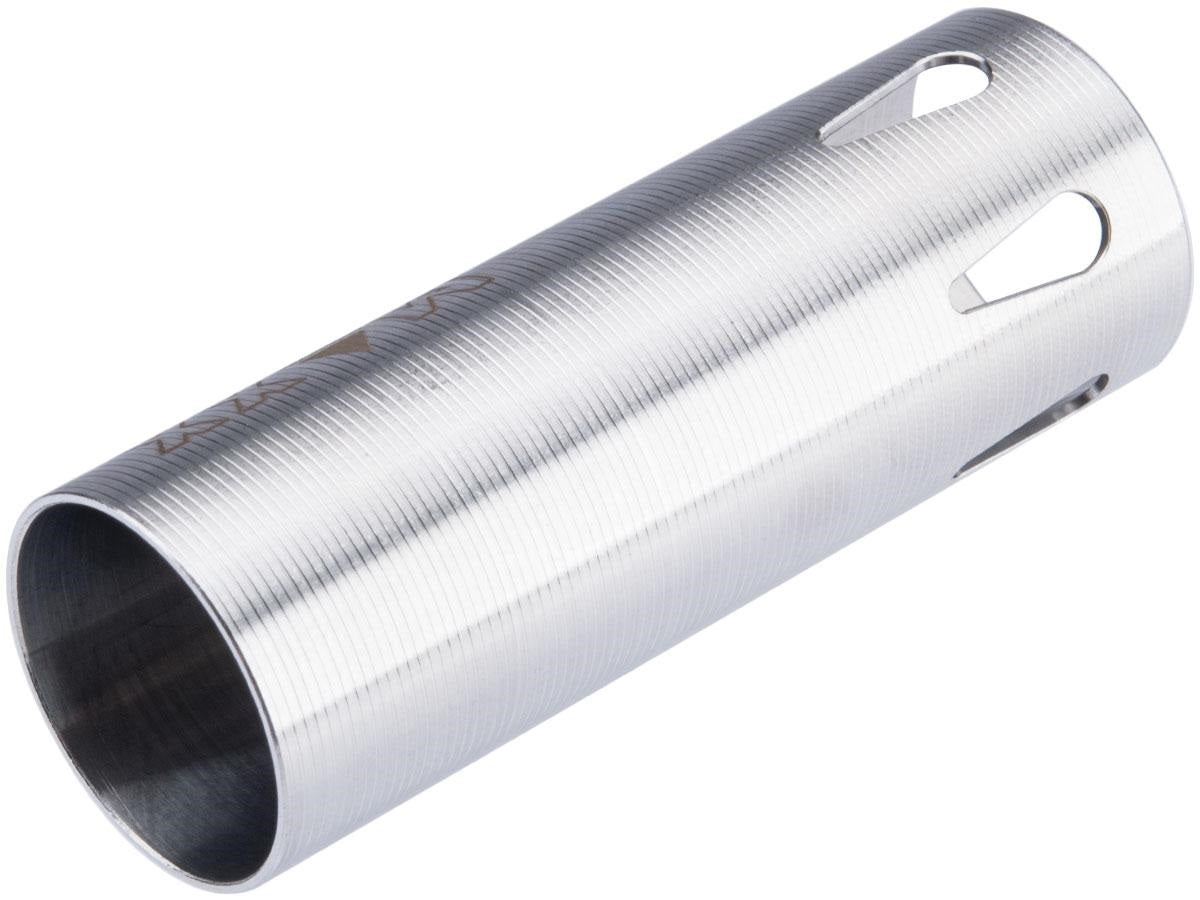

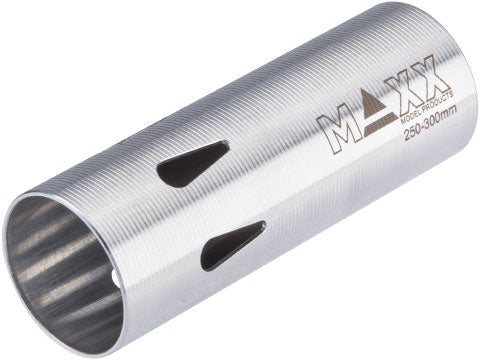

• Type 2: Type 2 Cylinders are ported cylinders that have inset cuts a third of the way into a cylinder to allow more air blow-off. Works best with 280mm to 430mm inner barrel lengths for PDW and CQB builds.

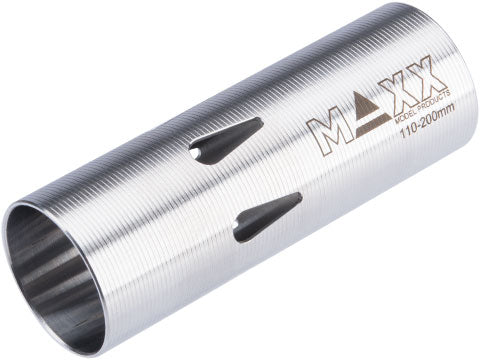

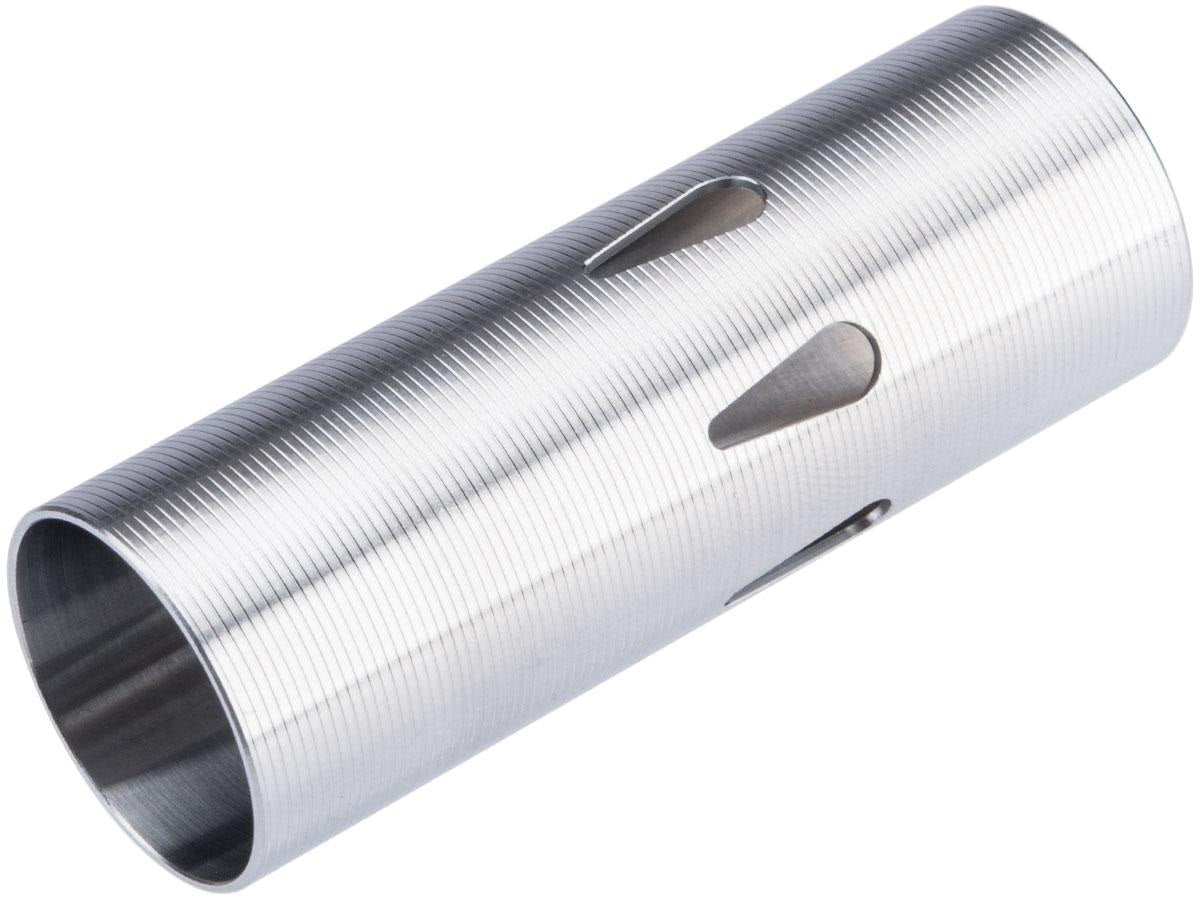

• Type 3: Type 3 Cylinders are ported cylinders that are cut at about the middle of the way into a cylinder to let half the overall air volume generated to be blown out. Works best with 45mm to 229mm inner barrel lengths for extremely short barrel builds and CQB oriented DSG builds.
