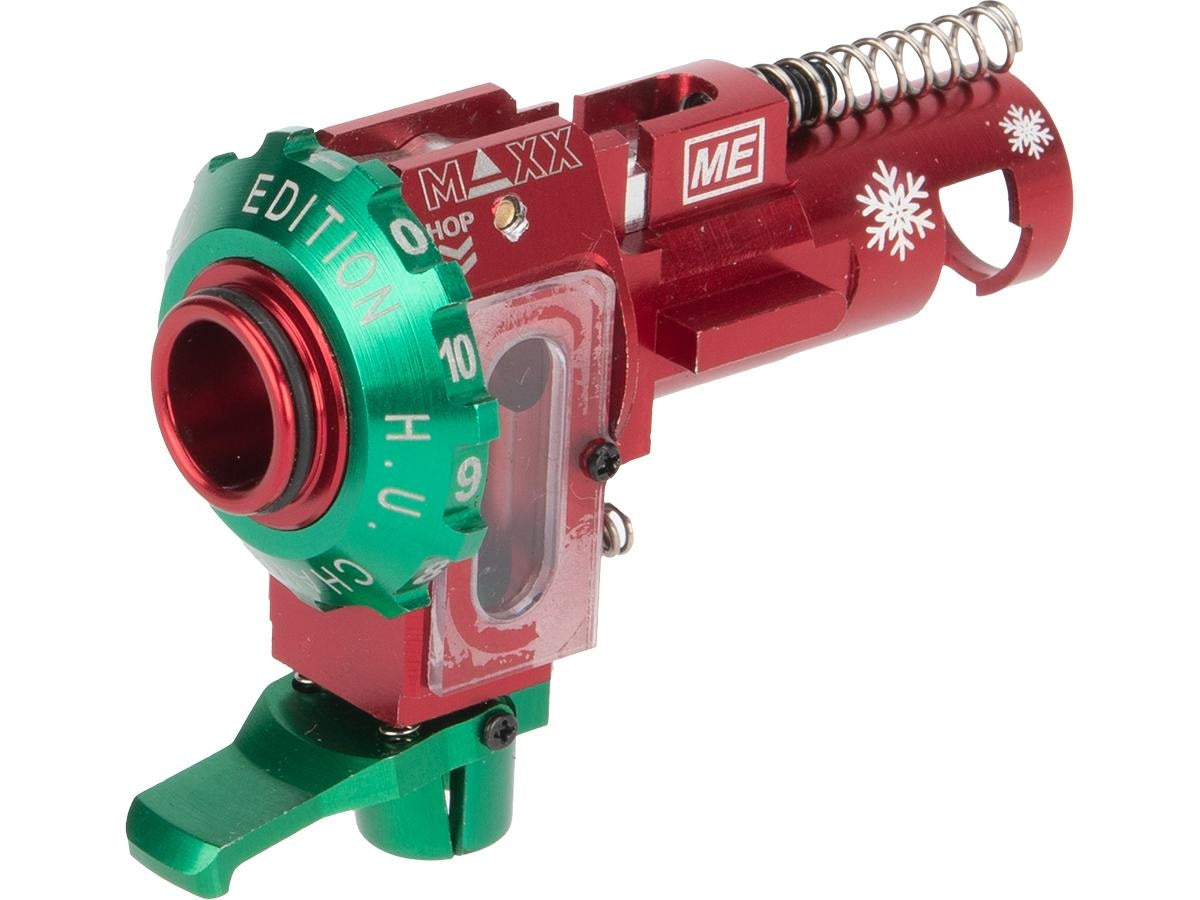

Maxx Model CNC Aluminum Hopup Chamber for M4 / M16 Series Airsoft AEG Rifles (Model: ME - PRO / Limited Edition Red)

Features

• Machined from a solid aircraft aluminum block with tight tolerances to provide better accuracy, consistency, and durability
• Precision rotary dial design for fine hopup adjustments
• Re-engineered the hopup levers and concave nubs to work best with R-hop, Flat-Hop and Standard-Hop to keep the BBs shooting straight and accurate on every single shot
• Accepted the nozzle length from 21.00mm to 21.25mm
• Fully compatible with most aftermarket soft and hard rubber bucking without losing FPS or dropping BBs
• Equipped with a new CNC Delrin Locking C-Clip design to hold barrel tight without wobbling and twisting, 3 compression springs on top, at bottom and in center of housing to ensure the hopup unit is exactly centered, straight and air tight
• Compatible with any V2 gear boxes with 11mm or 11.5mm bore
• Specially designed with BB Latching System to prevent dropping BBs after removing the magazine, Manually opened to release BBs from inside hopup chamber by hand

CNC Aluminum Hopup Chamber ME Pro (with BB Latching System) unit is precisely made to improve accuracy and ensure consistent air seal for Tokyo Marui (include KRYTAC, except KWA) M4/M16 Standard AEG series.

The Hopup Chamber ME unit has a precision rotary dial design for fine hopup adjustments, also re-engineered the hopup levers and concave nubs to work best with R-hop, Flat-Hop and Standard-Hop to keep the BBs shooting straight and accurate on every single shot.

The Hopup Chamber ME unit is designed to accept the nozzle length from 21.00mm to 21.25mm, and fully compatible with most aftermarket soft and hard rubber bucking without losing FPS or dropping BBs.

The Hopup Chamber ME Housing is equipped with a new CNC Delrin Locking C-Clip design to hold barrel tight without wobbling and twisting, and 3 compression springs on top, at bottom and in center of housing to ensure the hopup unit is exactly centered, straight and air tight at all times when adapted to any V2 gear boxes with 11mm or 11.5mm inner bore.

More than that, the Hopup Chamber ME Pro unit is specially designed with BB Latching System to prevent dropping BBs after removing the magazine. The Latching System can be also manually opened to release BBs from inside hopup chamber by hand.

***Test results: FPS might be increased by 5% to 10%. Please check your FPS!

Hopup Kit Includes:

• 1 x CNC Aluminum Hopup Chamber ME Pro (with BB Latching System) unit
• 2 x Strong Clear Vinyl Cover
• 1 x CNC Aluminum Standard-Hop Arm
• 1 x CNC Aluminum R-Hop Arm
• 1 x Silicone Rubber Standard-Hop Nub Damper
• 1 x Silicone Rubber R-Hop Nub Damper
• 1 x CNC Aluminum 5mm length Precision R-Hop Nub
• 1 x CNC Aluminum 6mm length Precision R-Hop Nub
• 1 x CNC Brass Threaded Slot Pin
• 1 x CNC Delrin Locking C-Clip
• 1 x CNC Barrel Brass Spacer
• 1 x Brass Spacer Holder Oring
• 3 x Steel Compression Spring

Manufacturer: Maxx Model

Specifications:

Overall Length: 51mm
Overall Height: 37.75mm
Hub Outer Diameter (to fit into Outer Barrel): min 11mm
Hub Inner Diameter (to fit Nozzle): max 8.3mm
Feeder Outer Diameter (to fit magazine): min 9.25mm
Feeder Length (to fit magazine): max 6.25mm
Application: For most Tokyo Marui (include KRYTAC, except KWA) M4/M16 standard AEG version 2 gear box
Material: Aluminum 6061
Type: One Piece

Test Results: FPS might be increased from 10FPS to 30FPS over the stock setup. Please check your FPS!
Disclaimer: Professional installation highly recommended. Please use discretion when installing custom parts as fit and compatibility may vary. Modification may be required. Professional installation recommended.

About Maxx Model Products

Maxx Model Products, Inc. began in 2001 as a company known by Microheli.com based in Canada, we designed and manufactured high quality upgrade parts and accessories for RC Helicopters, Drones, and Cars. Starting in 2016, Maxx took its experience in high quality RC components and expanded to Airsoft. Maxx launched itself into the Airsoft market with the release of our original M4 PRO hop-up unit. Through feedback from the community and constant improvements, we have achieved the most advanced M4 hop-up unit with the ME model. Taking what we learned in that process, Maxx now brings our attention to other platforms. With our years of experience Maxx looks to manufacture more advanced and innovative products for the whole market. Maxx Model Products, Inc. is a registered business in Canada.

! Hopup unit may require assembling
