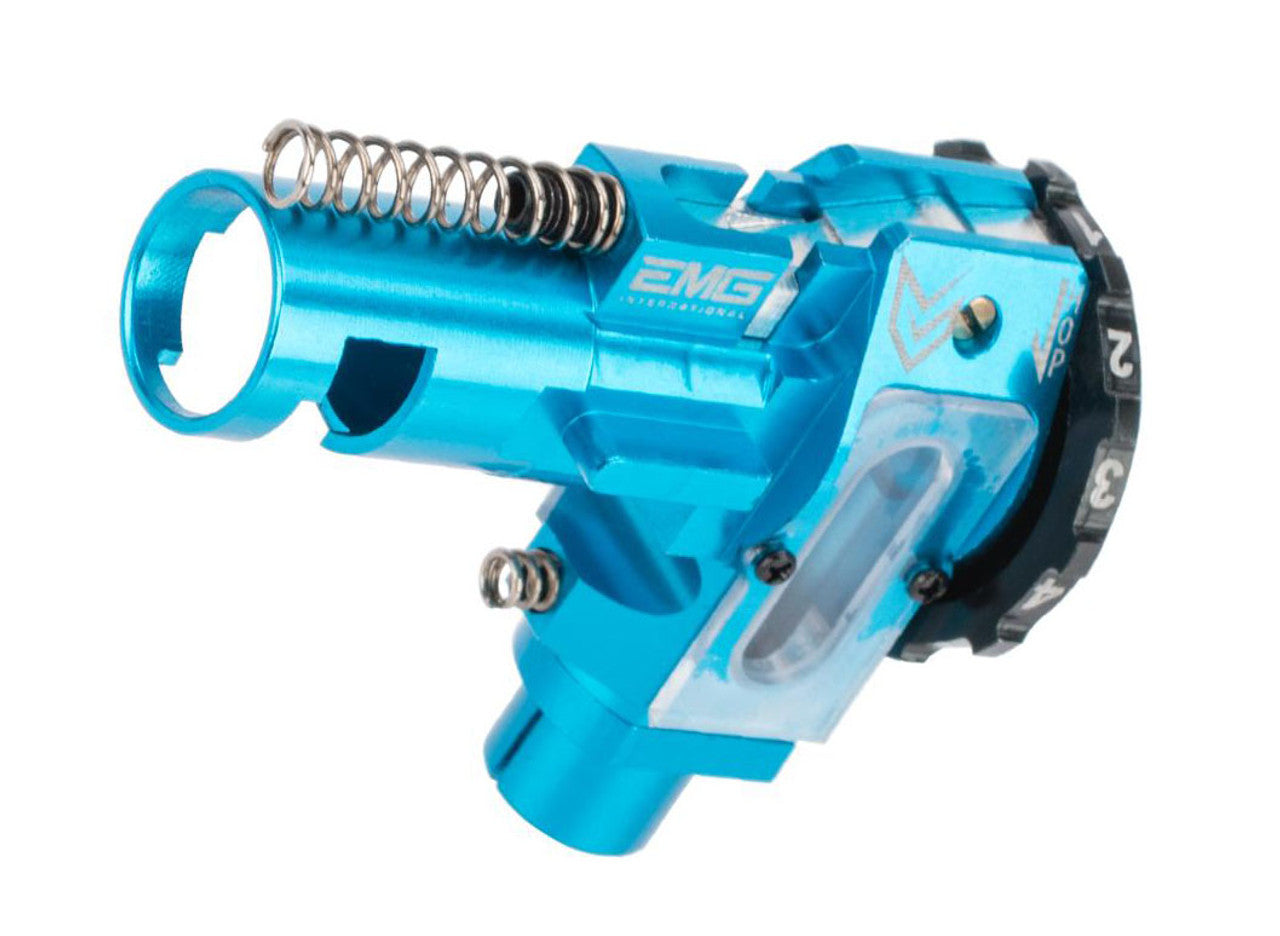

EMG / Maxx Model CNC Aluminum Hopup Chamber for M4 / M16 Series Airsoft AEG Rifles (Model: ME - SPORT / EMG Blue)

Features

• Machined from a solid aircraft aluminum block with tight tolerances to provide better accuracy, consistency, and durability
• Improved accuracy and ensure consistent air seal for Tokyo Marui (include KRYTAC and KWA) M4/M16 Standard AEG series
• Precision rotary dial design for fine hopup adjustments. Removable Brass Threaded Slot Pin for setup and maintenance
• Re-engineered the hopup levers and concave nubs to work best with R-hop and Standard-Hop to keep the BBs shooting straight and accurate on every single shot
• Compatible with any V2 gear boxes with 11mm or 11.5mm bore. Accepted the nozzle length from 21.00mm to 21.25mm
• Fully compatible with most aftermarket soft and hard rubber bucking without losing FPS or dropping BBs
• Equipped with a new CNC Delrin Locking C-Clip design to hold barrel tight without wobbling and twisting. Equipped with 3 compression springs on top, at bottom and in center of housing to ensure the hopup unit is exactly centered, straight and air tight
• Specially designed with BB Catching System to prevent dropping BBs after removing the magazine

CNC Aluminum Hopup Chamber ME Sport (with BB Catching System) unit is precisely made to improve accuracy and ensure consistent air seal for Tokyo Marui (include KRYTAC and KWA) M4/M16 Standard AEG series.

The Hopup Chamber ME unit has a precision rotary dial design for fine hopup adjustments, also re-engineered the hopup levers and concave nubs to work best with R-hop and Standard-Hop to keep the BBs shooting straight and accurate on every single shot.

The Hopup Chamber ME unit is designed to accept the nozzle length from 21.00mm to 21.25mm, and fully compatible with most aftermarket soft and hard rubber bucking without losing FPS or dropping BBs.

The Hopup Chamber ME Housing is equipped with a new CNC Delrin Locking C-Clip design to hold barrel tight without wobbling and twisting, and 3 compression springs on top, at bottom and in center of housing to ensure the hopup unit is exactly centered, straight and air tight at all times when adapted to any V2 gear boxes with 11mm or 11.5mm inner bore. More than that, the Hopup Chamber ME Sport unit is specially designed with BB Catching System to prevent dropping BBs after removing the magazine.

Hop-up Kit Includes:

• 1 x CNC Aluminum Hopup Chamber ME Sport (with BB Catching System) unit
• 2 x Strong Clear Vinyl Cover
• 1 x CNC Aluminum Standard-Hop Arm
• 1 x CNC Aluminum R-Hop Arm
• 1 x Silicone Rubber Standard-Hop Nub Damper
• 1 x Silicone Rubber R-Hop Nub Damper

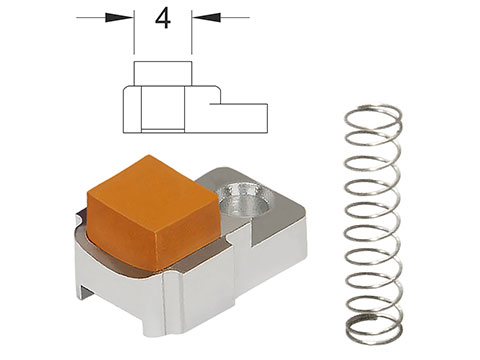

• 1 x CNC Aluminum 4.5mm length Precision R-Hop Concave Nub
• 1 x CNC Aluminum 6mm length Precision R-Hop Concave Nub
• 1 x CNC Brass Threaded Slot Pin
• 1 x CNC Delrin Locking C-Clip
• 1 x CNC Barrel Brass Spacer
• 1 x Brass Spacer Holder Oring
• 3 x Steel Compression Spring

Manufacturer: Maxx Model

Color: EMG Blue

Specifications:

Overall Length: 51mm
Overall Height: 37.75mm
Hub Outer Diameter (to fit into Gear Box): min 11mm - max 11.5mm
Hub Outer Diameter (to fit into Outer Barrel): min 12mm
Hub Inner Diameter (to fit Nozzle): max 8.3mm
Feeder Outer Diameter (to fit magazine): min 9.25mm
Feeder Length (to fit magazine): max 6.25mm
Application: For most Tokyo Marui (include KRYTAC, except KWA) M4/M16 standard AEG version 2 gear box
Material: Aluminum 6061
Type: One Piece

! Hopup unit may require assembling
