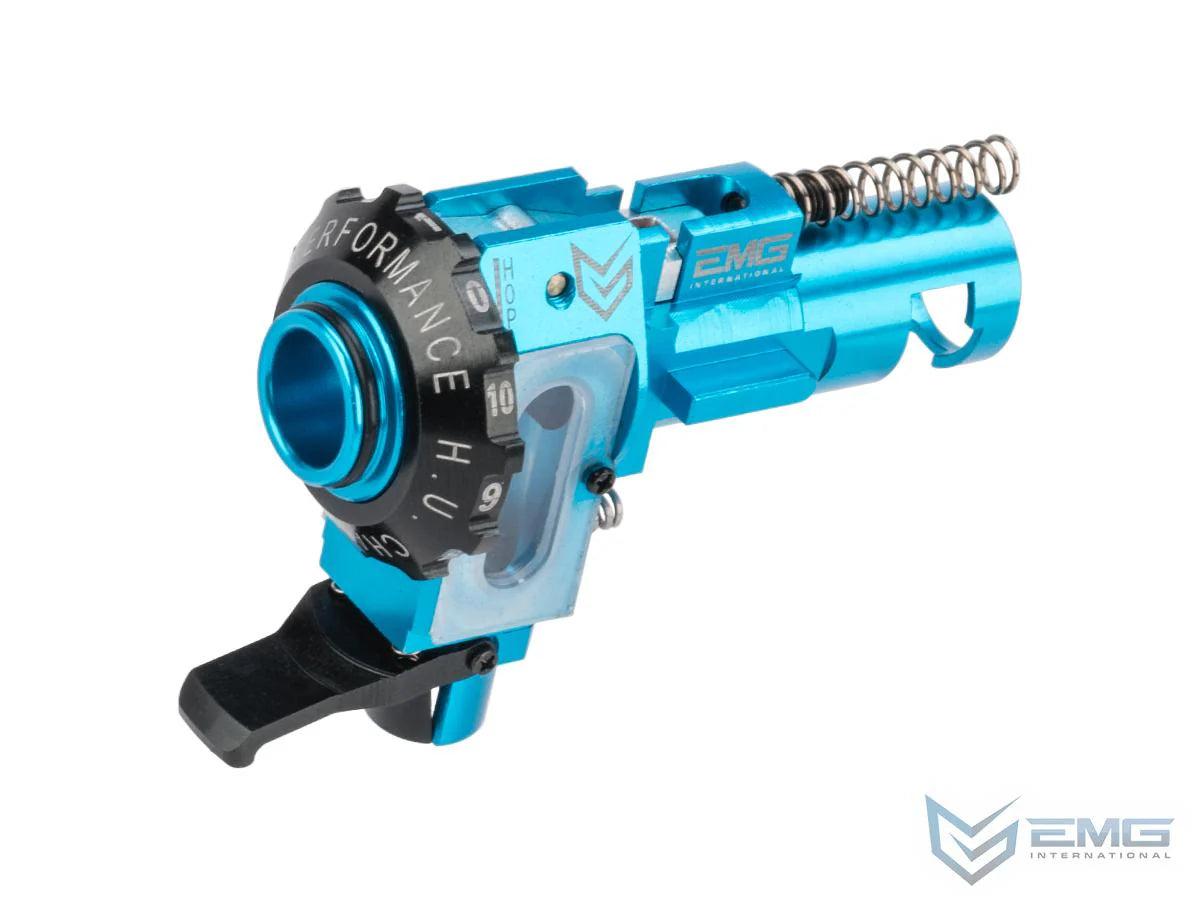

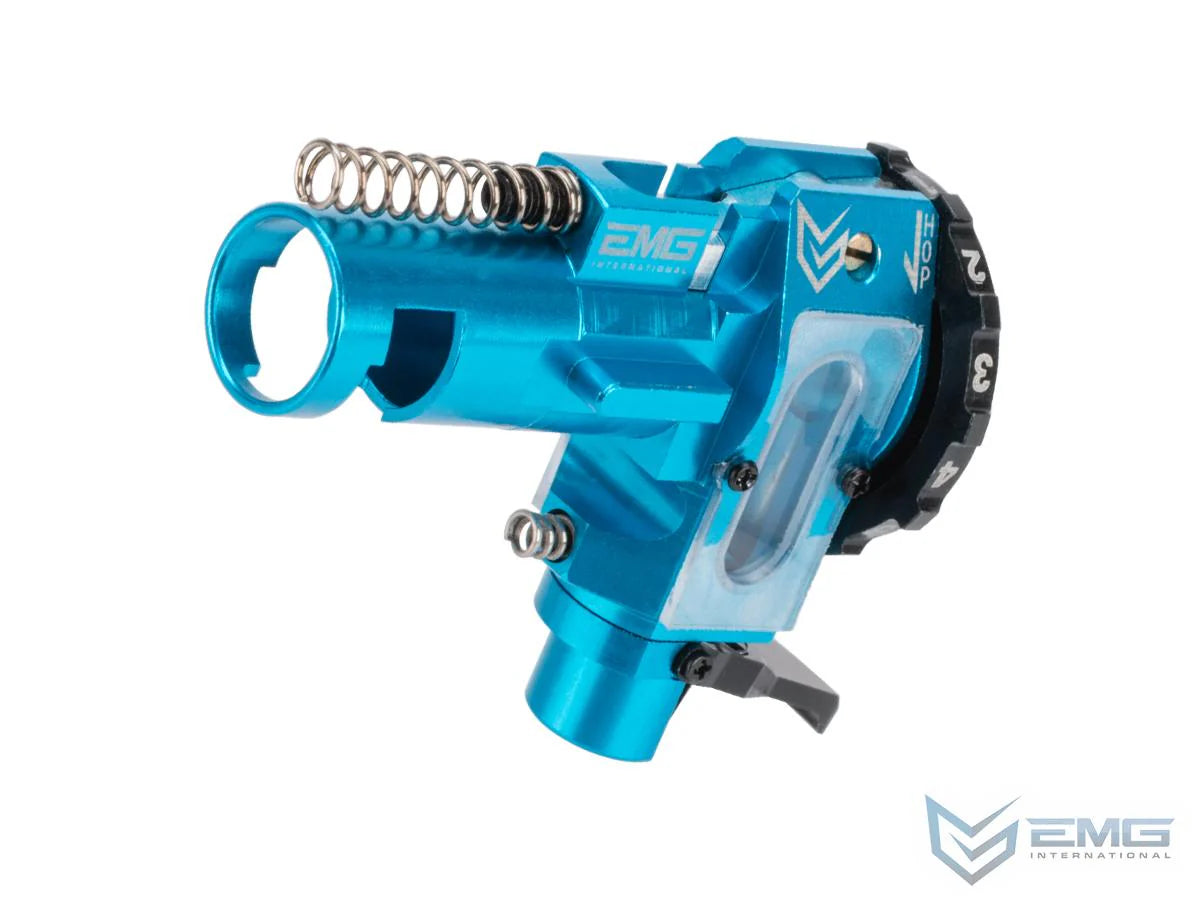

EMG / Maxx Model CNC Aluminum Hopup Chamber for M4 / M16 Series Airsoft AEG Rifles (Model: ME - PRO / EMG Blue)

Features

• Machined from a solid aircraft aluminum block with tight tolerances to provide better accuracy, consistency, and durability
• Precision rotary dial design for fine hop-up adjustments
• Re-engineered the hop-up levers and concave nubs to work best with R-hop, Flat-Hop and Standard-Hop to keep the BBs shooting straight and accurate on every single shot
• Accepted the nozzle length from 21.00mm to 21.25mm
• Fully compatible with most aftermarket soft and hard rubber bucking without losing FPS or dropping BBs
• Equipped with a new CNC Delrin Locking C-Clip design to hold barrel tight without wobbling and twisting, 3 compression springs on top, at bottom and in center of housing to ensure the hop-up unit is exactly centered, straight and air tight
• Compatible with any V2 gear boxes with 11mm or 11.5mm bore
• Specially designed with BB Latching System to prevent dropping BBs after removing the magazine, Manually opened to release BBs from inside hopup chamber by hand

CNC Aluminum hop-up Chamber ME Pro (with BB Latching System) unit is precisely made to improve accuracy and ensure consistent air seal for Tokyo Marui (include KRYTAC, except KWA) M4/M16 Standard AEG series.

The hop-up Chamber ME unit has a precision rotary dial design for fine hop-up adjustments, also re-engineered the hop-up levers and concave nubs to work best with R-hop, Flat-Hop and Standard-Hop to keep the BBs shooting straight and accurate on every single shot.

The hop-up Chamber ME unit is designed to accept the nozzle length from 21.00mm to 21.25mm, and fully compatible with most aftermarket soft and hard rubber bucking without losing FPS or dropping BBs.

The hop-up Chamber ME Housing is equipped with a new CNC Delrin Locking C-Clip design to hold barrel tight without wobbling and twisting, and 3 compression springs on top, at bottom and in center of housing to ensure the hop-up unit is exactly centered, straight and air tight at all times when adapted to any V2 gear boxes with 11mm or 11.5mm inner bore.

More than that, the hop-up Chamber ME Pro unit is specially designed with BB Latching System to prevent dropping BBs after removing the magazine. The Latching System can be also manually opened to release BBs from inside hop-up chamber by hand.

***Test results: FPS might be increased by 5% to 10%. Please check your FPS!

Hop-up Kit Includes:

• 1 x CNC Aluminum Hop-up Chamber ME Pro (with BB Latching System) unit
• 2 x Strong Clear Vinyl Cover
• 1 x CNC Aluminum Standard-Hop Arm
• 1 x CNC Aluminum R-Hop Arm
• 1 x Silicone Rubber Standard-Hop Nub Damper
• 1 x Silicone Rubber R-Hop Nub Damper
• 1 x CNC Aluminum 5mm length Precision R-Hop Nub
• 1 x CNC Aluminum 6mm length Precision R-Hop Nub
• 1 x CNC Brass Threaded Slot Pin
• 1 x CNC Delrin Locking C-Clip
• 1 x CNC Barrel Brass Spacer
• 1 x Brass Spacer Holder O-ring
• 3 x Steel Compression Spring

Specifications

• Overall Length: 51mm
• Overall Height: 37.75mm
• Hub Outer Diameter (to fit into Outer Barrel): min 11mm
• Hub Inner Diameter (to fit Nozzle): max 8.3mm
• Feeder Outer Diameter (to fit magazine): min 9.25mm
• Feeder Length (to fit magazine): max 6.25mm
• Application: For most Tokyo Marui (include KRYTAC, except KWA) M4/M16 standard AEG version 2 gear box
• Material: Aluminum 6061
• Type: One Piece
