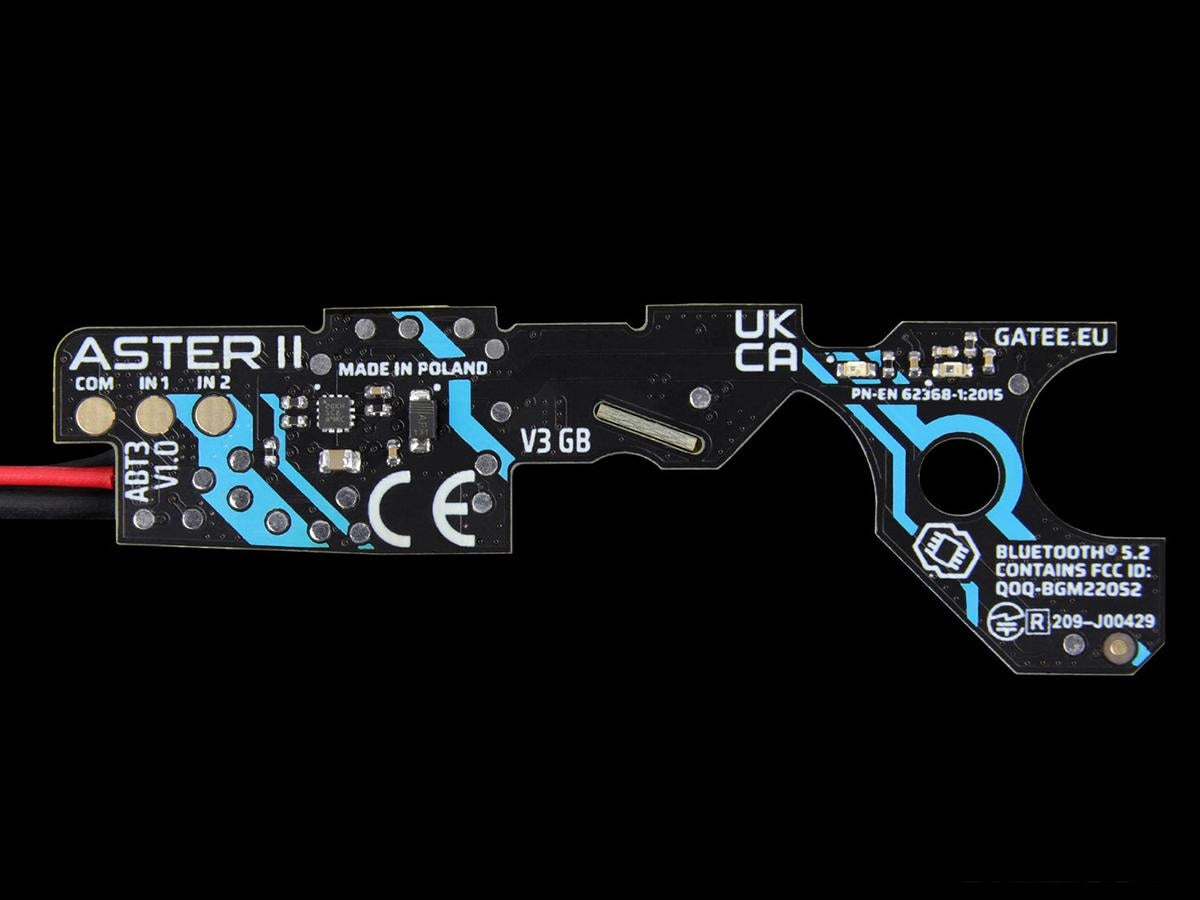

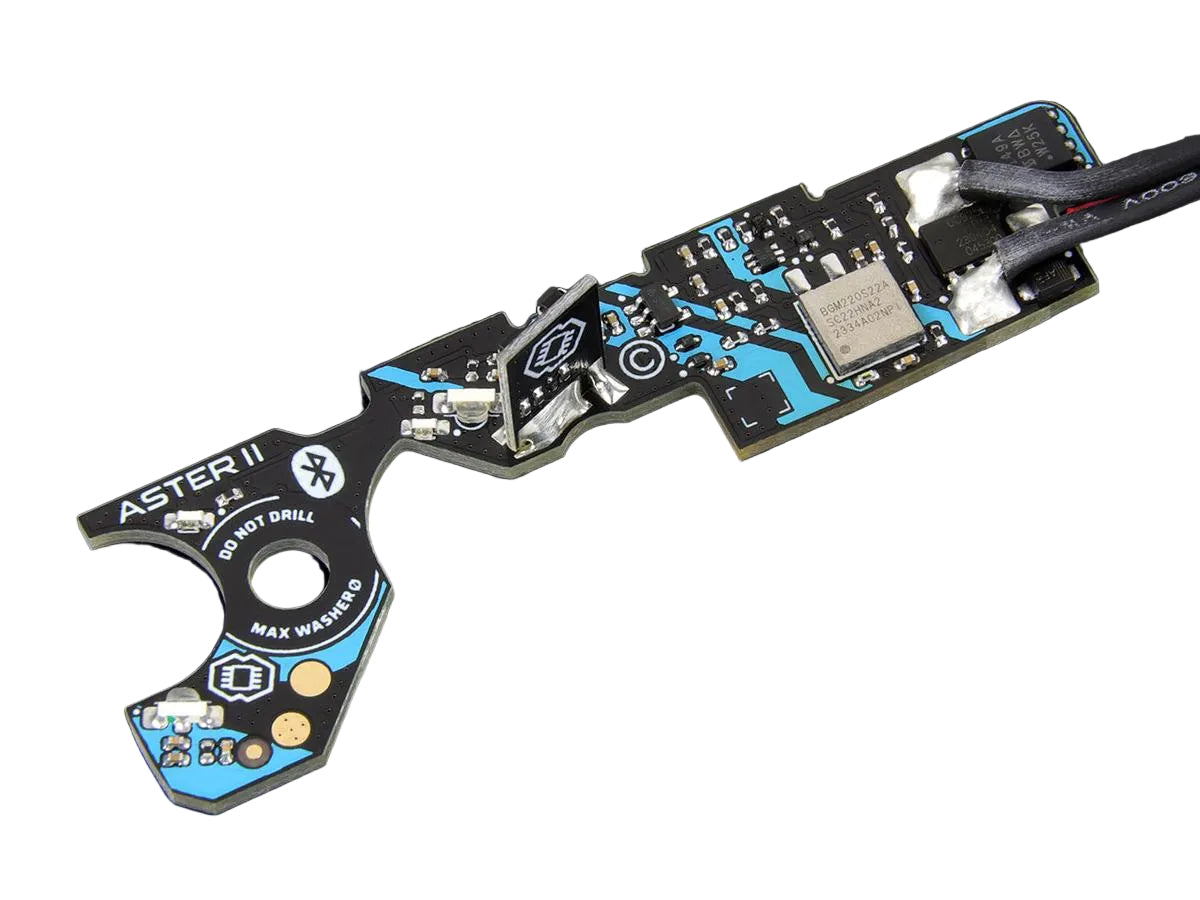

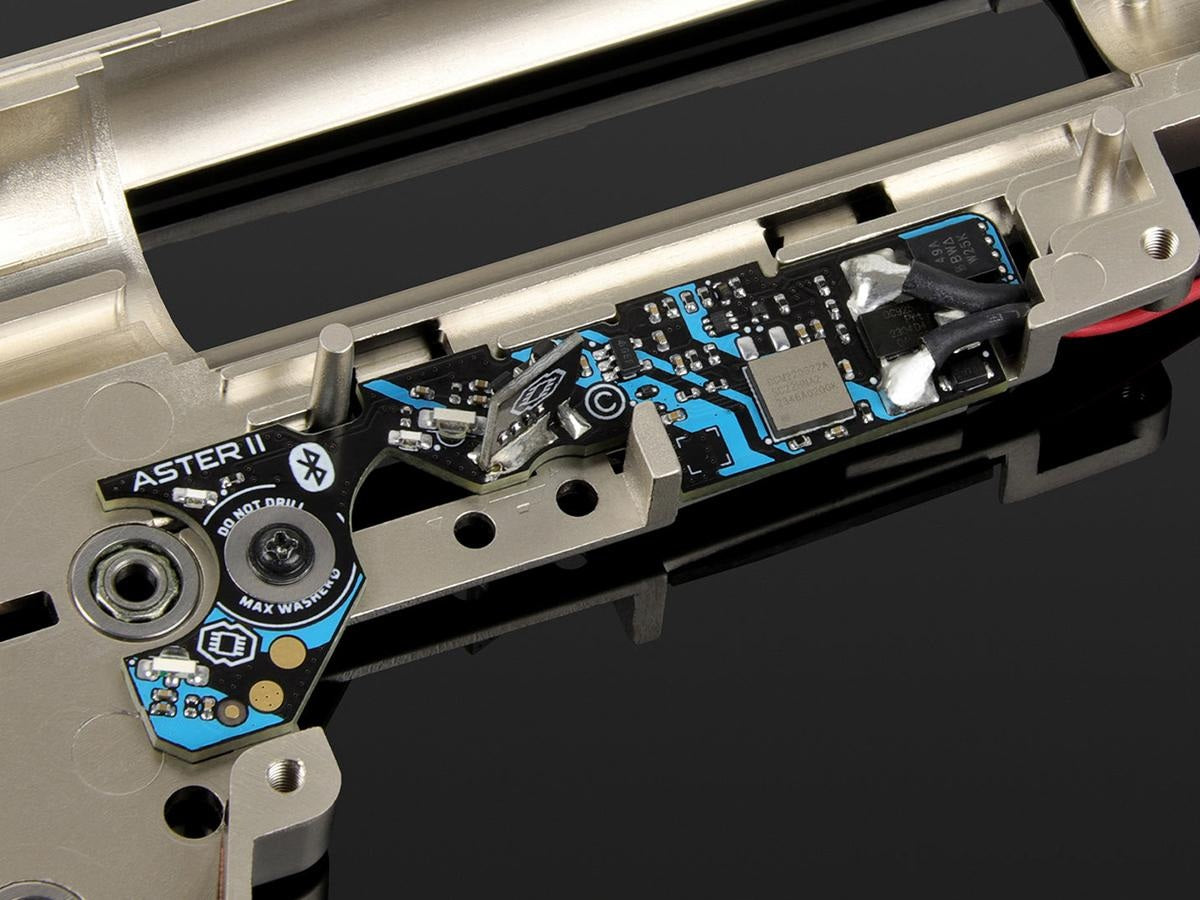

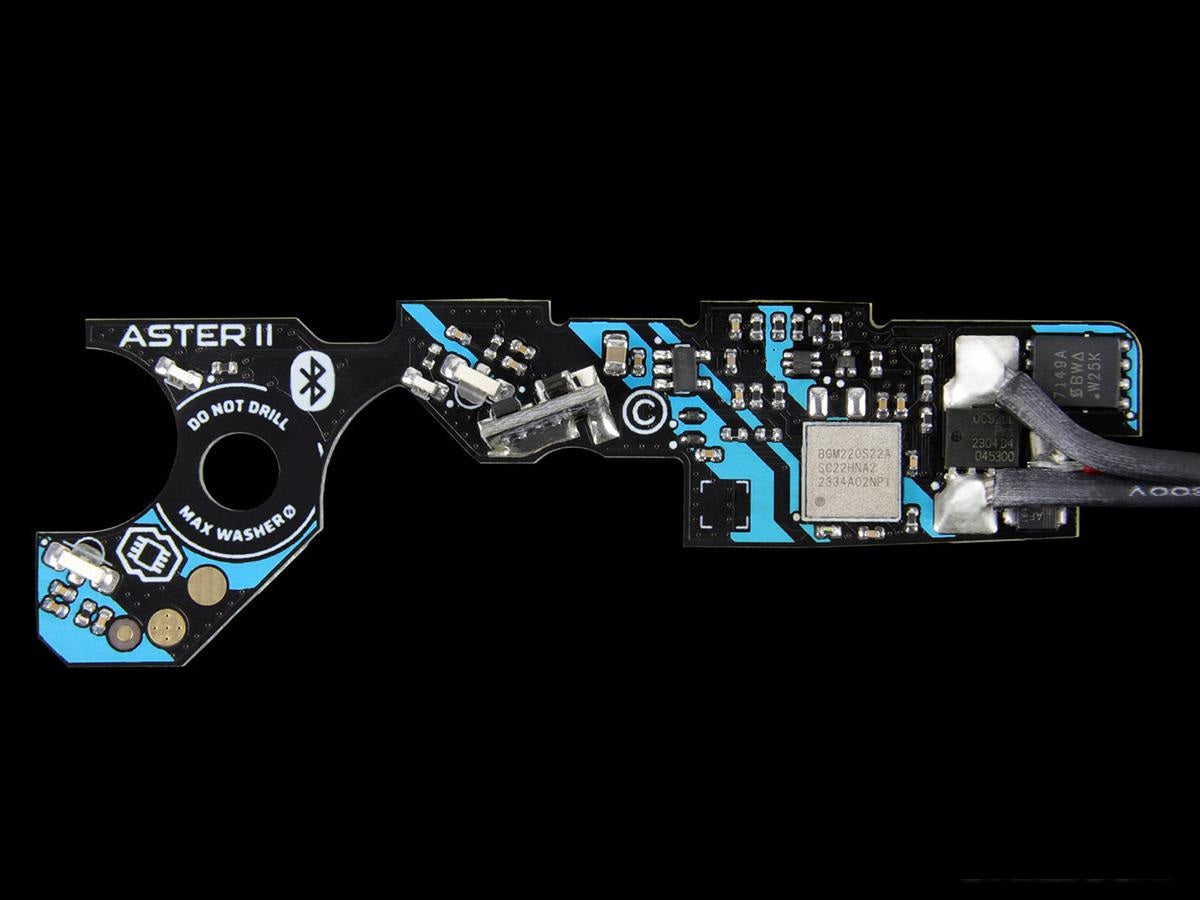

GATE ASTER II Expert V3 Bluetooth Airsoft AEG & HPA Programmable MOSFET Module

Features

• ASTER II Bluetooth® gives you total flexibility thanks to Bluetooth® 5.2 and compatibility both with AEG and HPA. You can update your firmware and get new options, connect additional accessories, check telemetry
• GCS app for iOS, Android, macOS or Windows with free firmware updates. Compatible with smartwatch (Wear OS or watchOS) and provides real-time data like BB counters & remote trigger!
• Compatibility both with AEG and single solenoid HPA engines
• Hair-trigger - up to 35 trigger sensitivities for the first millimeter (0.04in) of movement & up to 680 in the full range
• Configurable trigger reset (hysteresis) and top-notch automatic pre-cocking
• ASTER II Bluetooth® is a part of the GATE Ecosystem
• Lowest in the market current consumption - deep sleep mode with only 140µl;A current consumption prevents battery discharge
• Built-in voltage boost converter means trouble-free operation with weaker batteries and increases the switching efficiency
• 3.75V ready - ASTER II Bluetooth® operates at very low voltage (even 1.2V during the shot), which is important in high-tuned AEGs, where the voltage under load drops significantly
• Sensor supporting Infinite Torque-up, DSG, SSG, 19-tooth, and standard gears
• Works perfect with all popular brushless motors even with 11.1V batteries and comes with a multifunctional programmable I/O port allows to connect bolt-catch sensor, magazine sensor and more

The newly released ASTER II Bluetooth® is a total game changer for V3 gearbox owners bringing a breath of fresh air and brand new capabilities to all V3 gearbox replicas both for AEG and dual solenoid HPA. With Bluetooth 5.2 technology, you have direct access to settings, AEG telemetry, and extended features with the GCS mobile device and smartwatch app. ASTER II Bluetooth® is the first such versatile unit for V3 gearboxes compatible with both AEG and HPA. The AEG version works with both brush motors and also with brushless motors, even at 11.1 V. HPA enthusiasts, on the other hand, can connect both single solenoid valve and dual solenoid HPA engines. Adjustable trigger sensitivity, automatic Pre-cocking, Active Brake with adaptive mode and reliable optical sensors create an ideal system. The goal of creating ASTER II Bluetooth® for GB V3 was to build a versatile ETU, incorporating the latest GATE technology at a reasonable price.

Connect your ASTER II Bluetooth® with the GCS App and get total control of your AEG. Control your Airsoft replica from your iOS, Android, macOS or Windows device using a built-in Bluetooth®. You no longer dongles such as USB-Link or Blu-Link. Get real-time data from your smartwatch (with Wear OS or watchOS) to reinforce your tactical decisions and get the advantage necessary to win and even use your smartwatch as remote trigger.

What makes ASTER II Bluetooth® so special?

• Everything you need out-of-the-box
• Adjustable Quantum Trigger 2 included in the kit. Set trigger travel with screw and trigger sensitivity in the app.
• Built-in Bluetooth® 5.2
• Noise-resistant trigger detection algorithm
• Hair-trigger out-of-the-box. Even 35 trigger sensitivities for the first millimeter (0.04 in) of movement & up to 680 in the full range
• Additional protection against interferences thanks to multi-layer PCB with EMC shield
• Automatic Pre-Cocking: 0%, 20%, 40%, 60%, 80%, 100%
• Trigger sensitivity adjustment without any limitation what™s more, you can now adjust Trigger Reset (hysteresis)
• Improved cycle detection
• Active brake adjustment: Adaptive / 1-100%
• 343 selector modes. All possible combination of: SAFE, SEMI, BURST, BINARY, BURST/AUTO, AUTO & SEMI RAMPING
• The GCS app enables firmware updates via the internet, which means instant application of improvements
  What is an ETU?
  It is an Electronic Trigger Unit replacing trigger contacts and the cut-off lever, which takes control of your AEG.

  What is the self-learning automatic pre-cocking?

• thanks to pre-cocking, you gain trigger reaction similar to real life
• automatically sets piston position
• easy-to-use just set one of the 5 modes: 0%, 20%, 40%, 60%, 80%, 100%
• automatically adapts to the battery voltage and rate of fire

ASTER II Bluetooth® and GCS App gives you total control of your replica.

GCS lets you:

• Control your Airsoft gun from a smartphone with Android, iOS and PC with Windows or macOS

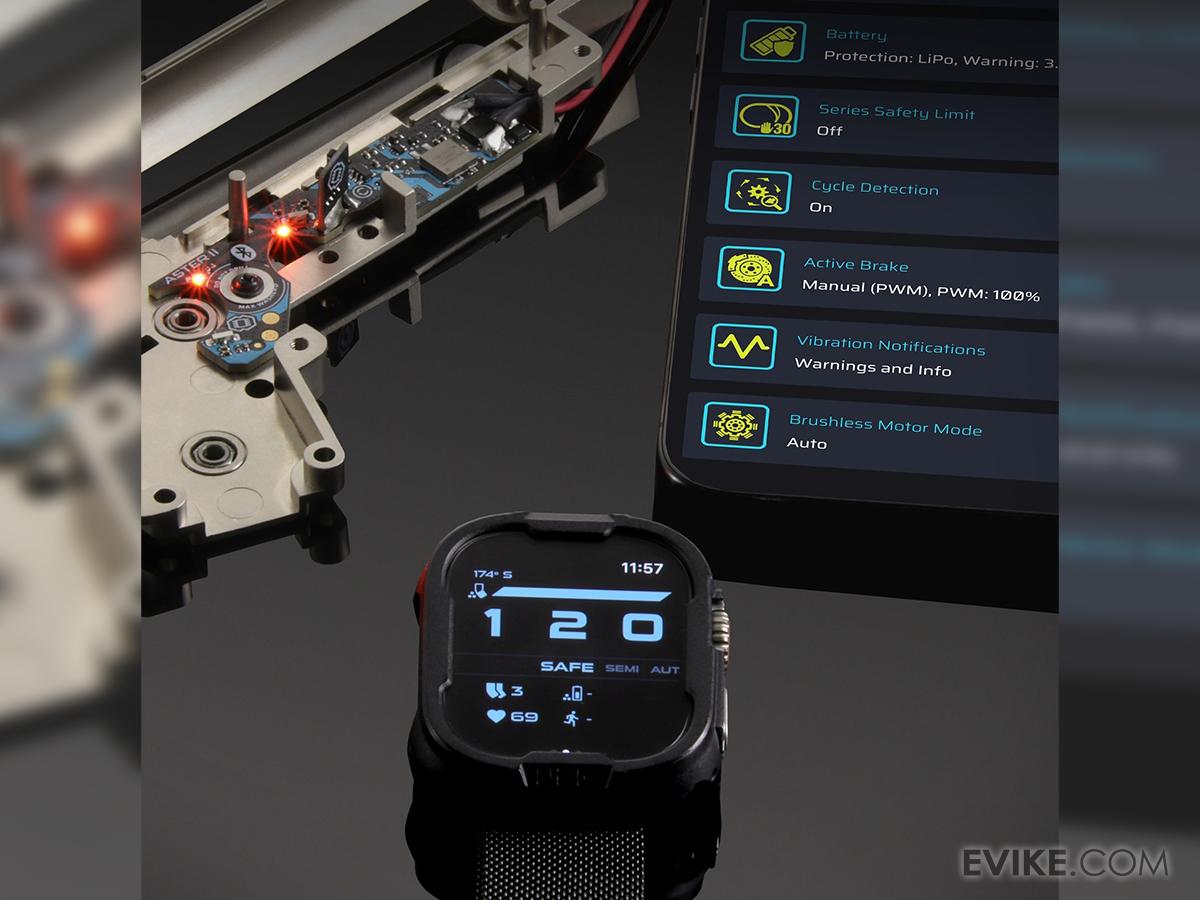

• Get real-time data from your smartwatch (with Wear OS or watchOS) to reinforce your tactical decisions and get the advantage necessary to win and even use your smartwatch as remote trigger.
• No more surprises with an empty magazine or a discharged battery
• Easily adjust the ASTER II Bluetooth® settings during the game
• Update and upgrade firmware
• View the BB counters, electrical measurements, and statistics
• Perform diagnostics and send reports
• Get the latest news from GATE Enterprise

Manufacturer: GATE

Note: The unit is compatible with single solenoid engines. To connect, the Cable with connector for single solenoid HPA engine for TITAN II Bluetooth® [AEG wiring] & ASTER II Bluetooth® is required (not included in the set).

Specifications

Supply Voltage Range: 3.75-12.9V
Current Consumption: 20mA
Low Power Mode: 130 µA
Dimensions (Length x Width x Height): 43.8mm x 28.7mm x 5.5mm
Finished Product Weight: 23.4g
Operating Temperature Range: min. -15°C max. + 50°C
Relative Humidity: ≤80%
Compatibility: Pulsar S, Wolverine INFERNO Gen 2, Wolverine REAPER, PolarStar JACK, Redline N7 and other compatible HPA and V3 AEG Airsoft HPA engines and gearboxes.
Package Includes: MOSFET, Gearbox Stickers, Selector Plate Sticker, Installation Kit, Quickstart Guide

! Gearbox and other accessories not included
