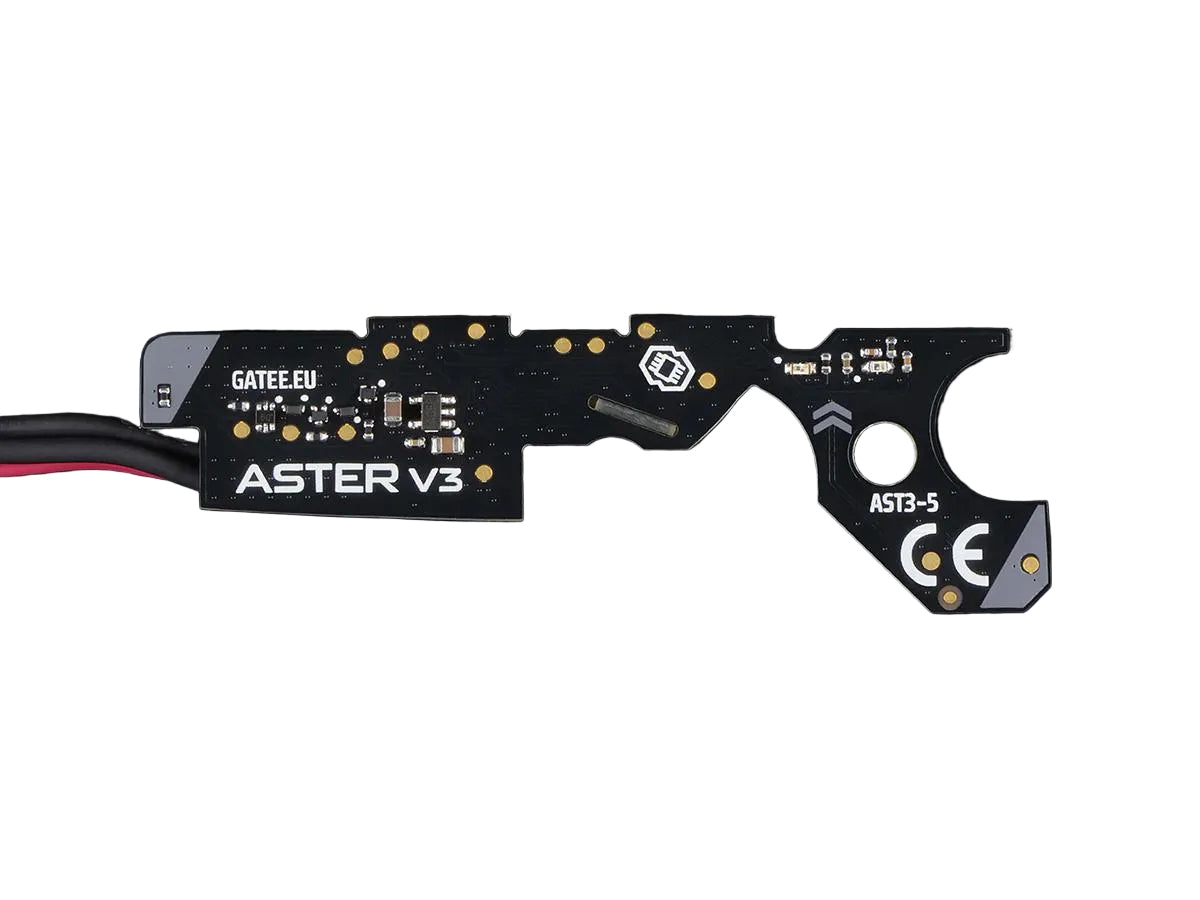

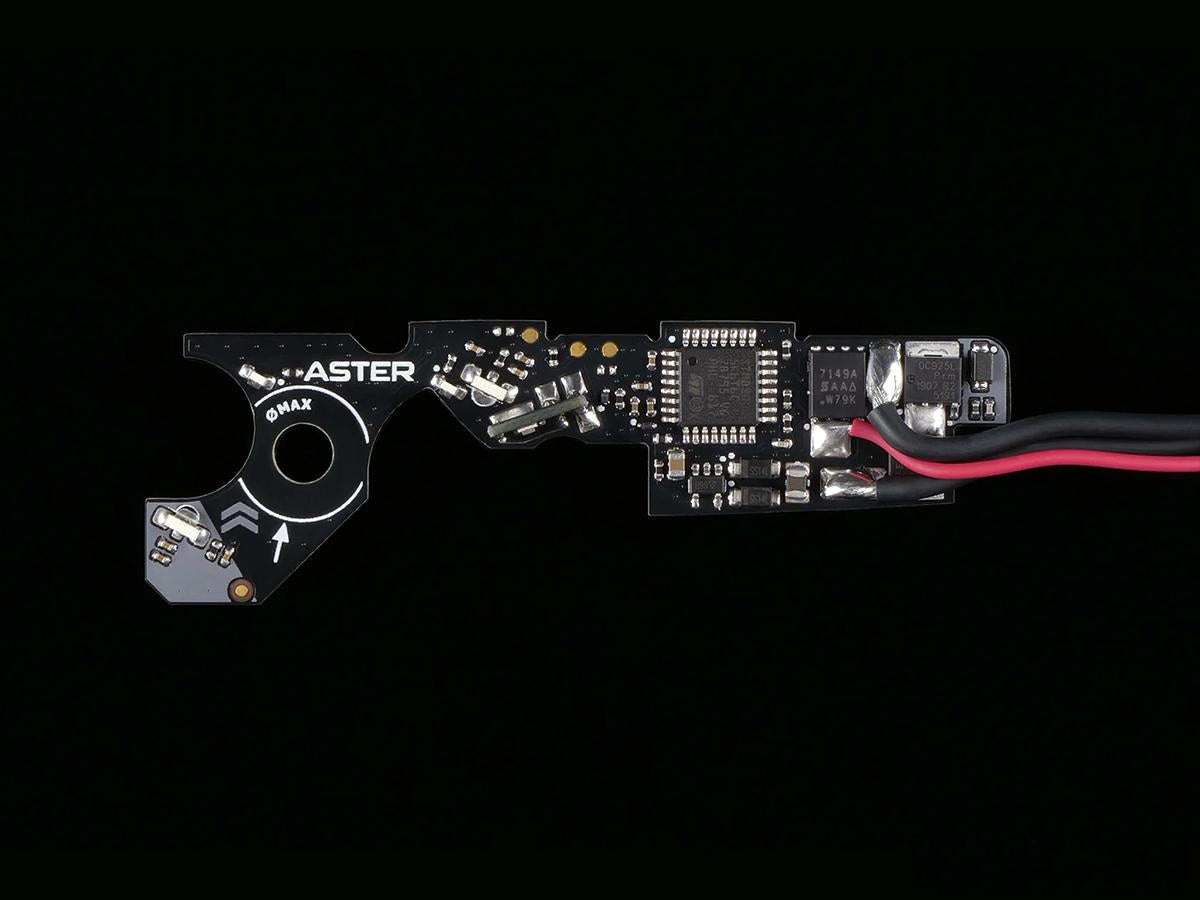

GATE ASTER V3 SE Airsoft Drop-In Programmable MOSFET Module (Model: V3 Expert)

Features

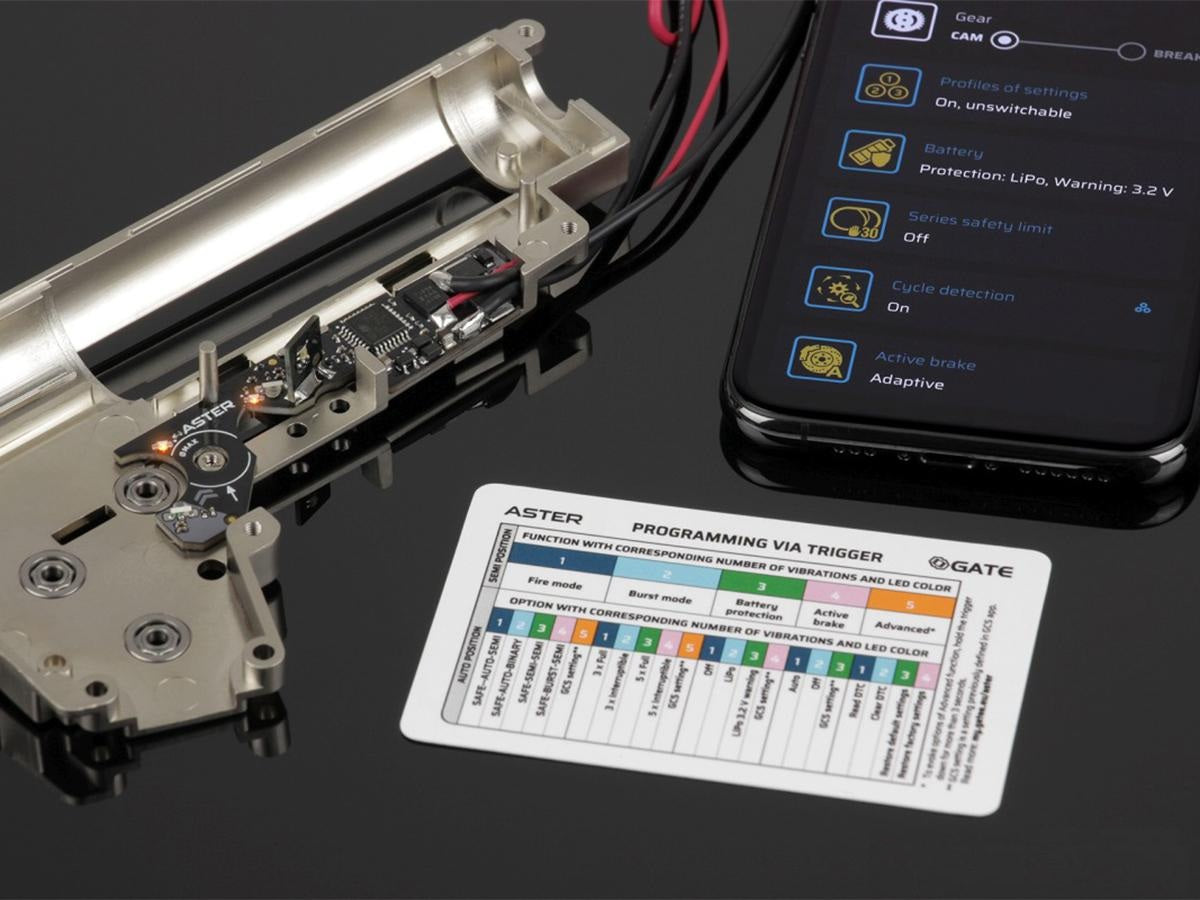

• App-based control station gives you total control for your AEG
• Able to adjust more features through your trigger than previous models without the need of a USBLink or BluLink
• Conformal coating (Military Specification MIL-V-173C) resistance to atmospheric conditions
• Optical sensors for detecting gear cam, trigger and selector position
• Multiple adjustable options include; fire selector modes, pre-cocking, ROF control, low battery warning, active braking, trigger sensitivity
• 343 Programable modes including safe, semi, auto Aug, Semi-Burst, auto-burst and binary.
• Brushless motor compatible
• Noise-resistant trigger detection
• Sensor that supports Infinite Torque-up, DSG, SSG, 19-tooth and standard gears
• ASTER is resistant to reverse polarity
• Unlike other models the expert model allows profiles for multiple user pre-configurations

ASTER V3 SE is a complex system that turns your AEG into future-proof advanced training equipment. Unleash the full potential of your AEG by replacing trigger contacts with an advanced Computerized Trigger Unit. Gain unique tactical advantage thanks to extremely fast trigger response and lots of other useful functions.

ASTER V3 SE raises the price-performance ratio including new functions programmable via trigger. Now, out-of-the-box, you can set sensitivity from hair to full movement. Improved Programming via Trigger gives you new settings like automatic Pre-Cocking (LOW, MID, HIGH), trigger sensitivity adjustment, Active Brake settings with top-class adaptive mode and new SAFE - SEMI - BINARY selector mode. Calibration, DTC codes - all available just via trigger and selector movement. ASTER's smart fuse protects your AEG™s battery, motor, and the controller, even in the case of reverse battery connection. This feature, along with the optical sensors, makes ASTER V3 SE one of the most durable ETUs on the market.

Manufacturer: GATE

How to update firmware:
-plug Aster battery connector into USBlink or BluLink and connect it to a Cell phone or PC with the GCS app installed
-Go to Status panel and select the most current firmware version
-if not already installed, click "update". this process should take ~2 min to install. all of your previous settings will be saved

Specifications

Dimensions: 43.8mm x 28.7mm x 7.2mm
Weight: 22.25g
Wiring Direction: Front Wired
Current Consumption: 23 mA
Low Power Mode:288 µA
Operating Temperature Range: min. -15°C max. + 50°C
Relative Humidity: ≤ 80%
Maximum Operating Voltage: 12.9 V (LiPO 11.1 V)
Minimum Operating Voltage: 3.75 V
Compatibility: Fits most Version 3 Airsoft AEG gearboxes

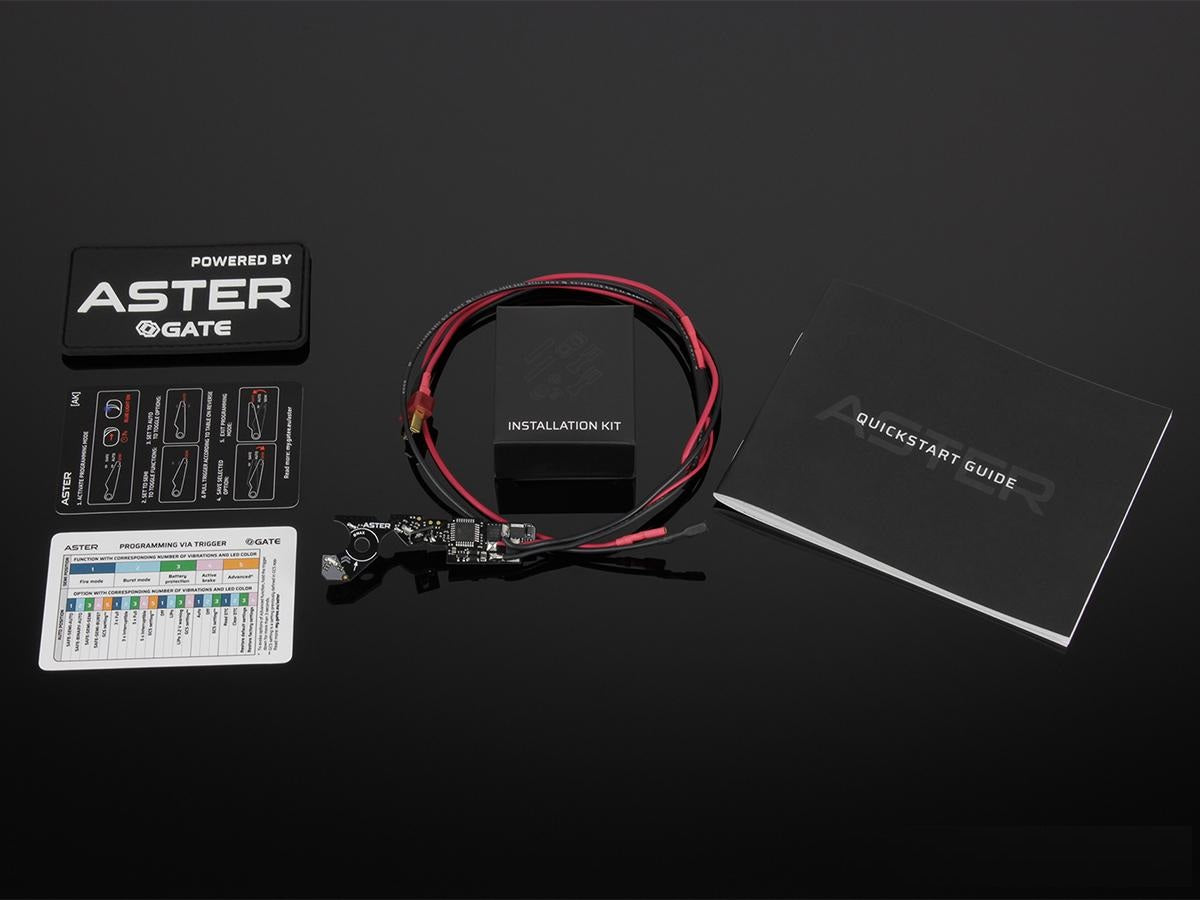

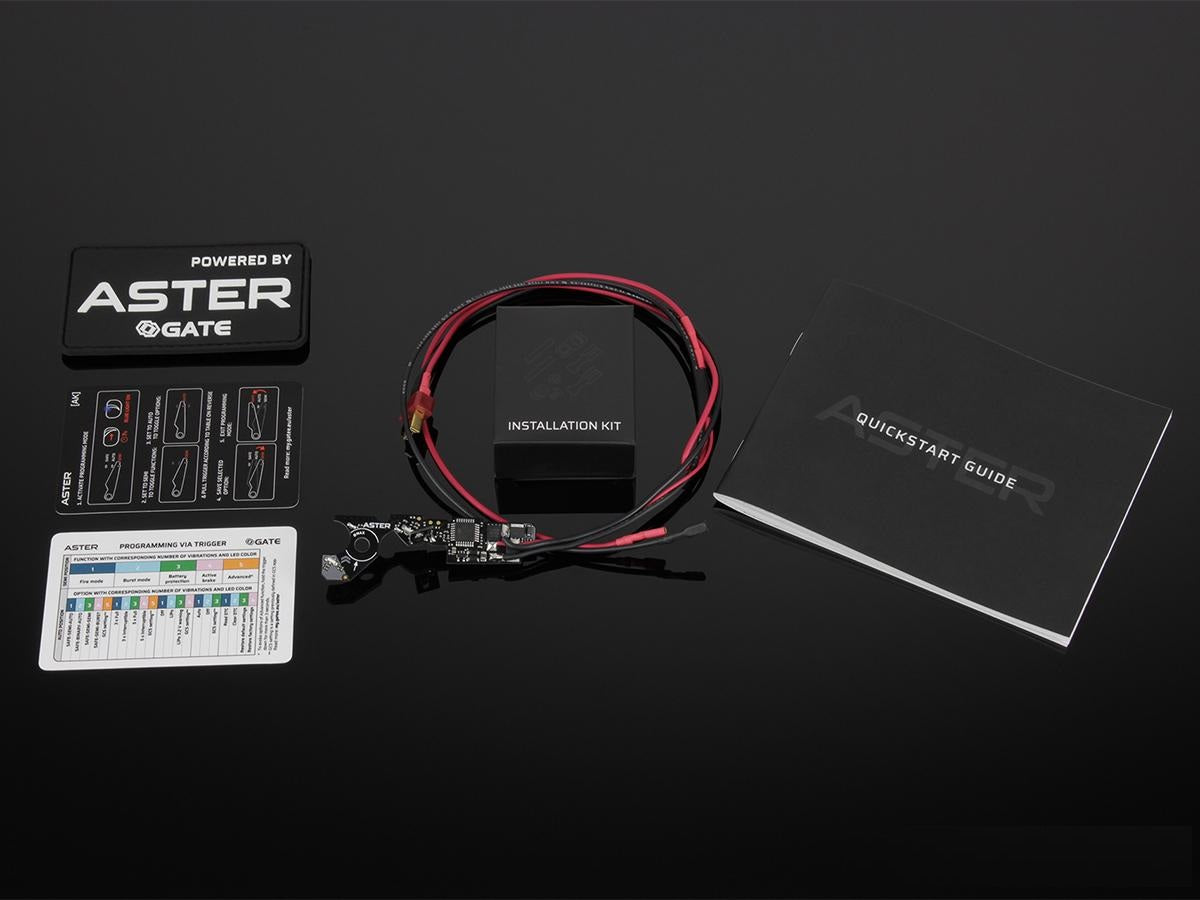

Package Includes: ASTER Module, "Programming via Trigger" Card, Aster Patch, Installation Kit, Quickstart Guide
