Features

• Five optical trigger sensors allow you to control trigger sensitivity. You don't have to disassemble your AEG. Just connect to the GATE Control Station App to adjust the trigger to your preferences and skill level
• Two selector sensors allow you to take advantage of hundreds of selector mode variations, depending on firmware edition. The following modes are available for selection*: Safe, Semi, Binary, Burst, Burst / Auto, Auto, & Semi Ramping
• Victory in the game is often a matter of fractions of seconds. The new advanced cycle detection algorithm, thanks to a dual gear sensor, allows for smooth and precise pre-cocking adjustments in even the most exigent configurations increasing trigger response. Thanks to pre-cocking, you gain a trigger reaction similar to a real replica. This allows for initial spring compression, which speeds up trigger response significantly
• Mag feature allows for simulating magazines of lower capacity than actually used. Depending on Firmware Edition, allows you to set a simulation of magazine capacity from 1 BB up to 250 BBs. Even if you have a high-capacity magazine, this function lets you truly increase the realism of your game by imitating that your magazine is real-cap
• ROF control enables the reduction of a gun's rate of fire. You can use stronger batteries and still have a ROF exactly as you like. Depending on firmware edition, you can choose between Adaptive, Manual PWM, Manual Delay, and Manual Delay + PWM
• Smart trigger enables you to achieve faster trigger response. It works with the ROF control system, allowing you to achieve faster trigger response with the same rate of fire
• Protection against battery over-discharge. Modern LiPo and LiFe batteries are very sensitive to over-discharge. If you do not want to damage the battery and you care about its service life, this protection is indispensable. The microprocessor is constantly monitoring battery voltage. When voltage drops to a critical level, it will not allow firing. The number of battery cells can be detected automatically
• Active braking adjust the motor's braking power according to your needs. Choose breaking value manually or set the Adaptive Active Brake. It will stop the piston in the front position, which eliminates unnecessary stresses, increasing the service life of the gearbox and its parts
• Thanks to the gear sensor, TITAN precisely detects where the cycle should finish. Therefore, even the shortest trigger action produces at least one full cycle. The optical sector gear sensor counts each tooth of the gear, so it's possible to use all types of gears: Infinite Torque-up, DSG, SSG, 19-tooth, and standard ones. In EXPERT Firmware, you can select the cycle manually
• Diagnostics & updates feature allows you to troubleshoot your AEG in case of any issue. Errors are communicated once they occur, and their description can be found in the GCS App. GCS allows for making firmware updates via the internet, which enables you to quickly apply changes, improvements, and bugfixes
• The Smart Fuse protects your AEG's battery, motor, and controller, even in case of reverse battery connection. A combination of current, voltage, and temperature measurements makes your AEG installation highly reliable. It protects the MOSFET against overheating, overloading, and short-circuiting. If your airsoft gun gets jammed, this function protects the motor and battery against damage

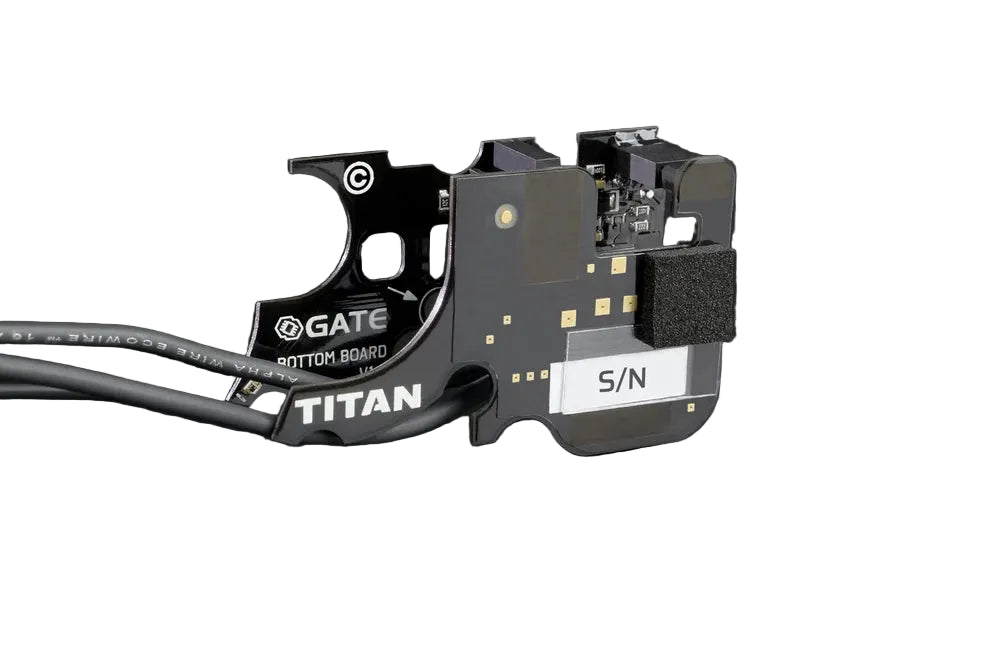

Transform your AEG with a V2 gearbox into a computerized training system and gain a unique tactical advantage thanks to extremely fast trigger response just like in real life. One of the advantages of TITAN V2 are the 8 optical sensors. Unlike mechanical switches prone to faults, optical sensors are much more reliable. With an additional dongleUSB-Link or BluLinkyou can adjust trigger sensitivity with military precision. If you need even more control, select one of the Nova Triggers adjustable speed triggers designed especially for TITAN V2. Make no compromises and utilize years of experience of many thousands of users around the world, proving TITAN to be the best choice for advanced and professional players. Gain a unique tactical advantage matching your skills, thanks to a reliable MOSFET with tons of functions such as Hair Trigger, BURST Mode, Active Brake, Binary Trigger, and other essentials.

What makes TITAN V2 so special?

• Top-notch optical sensors
• Automatic Pre-Cocking
• Replicates trigger response just like in real life
• Configuration of all settings via the Bluetooth® dongle Blu-Link and GCS App for Android and iOS devices
• Configuration of all settings via USB-Link and the GCS App for Android, Windows, and macOS devices
• Sector gear sensor supporting most popular types of gears: DSG, SSG, 19-Tooth, and standard ones
• Innovative optical sensors instead of mechanical switches prone to faults
• Binary Trigger as one of the basic functions
• Premium level functionality

Compatibility with GATE Ecosystem

• Compatibility with GATE Ecosystem including GATE STATUS and future hop-up chamber with tracer
• User-friendly GCS app for iOS, Android, macOS, Windows, watchOS, Wear OS
• TITAN II can be connected with smartwatch
• Ultra-precise telemetry measurements thanks to the new current sensor

Connect your TITAN with the GCS App via Bluetooth® and get total control of your AEG:

• Control your airsoft gun from your iOS, Android, macOS or Windows device
• Set trigger sensitivity exactly as you like and adjust other TITAN settings in a simple way
• Use automatic Pre-Cocking to gain a trigger reaction just like in a real gun
• Try out ROF control, magazine simulation, and other functions
• Update and upgrade Firmware
• Check BB counters and telemetric data
• Perform diagnostics and send reports
• Virtual STATUS for smartwatches and smartphones
• Bolt Catch and magazine sensors for a realistic reload sequence

GCS APP

ASTER and GCS App give you total control of your AEG. ㅤ

ㅤ

The GCS offers you the option to:

• Control your airsoft gun from a smartphone with Android, iOS and PC with Windows or macOS

• Get real-time data from your smartwatch (with Wear OS or watchOS) to reinforce your tactical decisions and get the advantage necessary to win

• No more surprises with an empty magazine or a discharged battery

• Easily adjust the ASTER settings during the game

• Update and upgrade firmware

• View the BB counters, electrical measurements, and statistics

• Perform diagnostics and send reports

• Get the latest news from GATE Enterprise

Manufacturer: GATE

Specifications:

Supply Voltage Range: 3.75 - 17 VDC
Current Consumption: 24mA
Low Power Mode: 280µA
Dimensions (L x W x T): 47.2mm x 28.7mm x 13.5mm
Finished Product Weight: 27.6g
Operating Temperature Range: -15 Degrees C Minimum, +50 Degrees C Max
Relative Humidity: < 80%
Compatibility: Most Standard Version 2 Airsoft AEG Gearboxes
Package Includes: TITAN V2 Expert Drop-In Module, Installation Kit, Quickstart Guide, TITAN Patch


The TITAN is NOT compatible with the WARFET programming card

About GATE

Since 2009, GATE company has been designing and producing the most innovative AEG Control Systems and MOSFETs. GATE has premises located in Cracow, Poland with products successfully entered global markets and are being sold in more than 30 countries.
