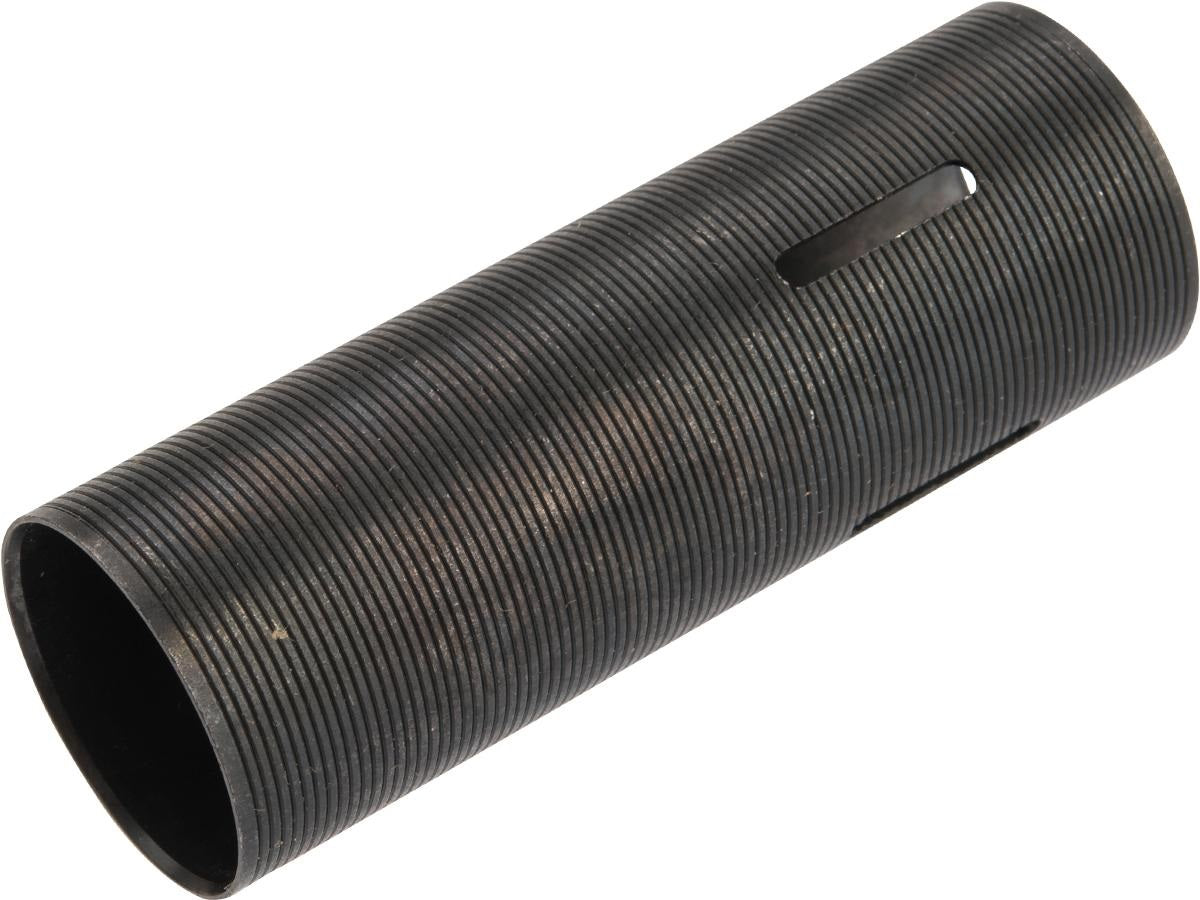

Lonex Stainless Steel Ribbed Cylinder for Airsoft AEG (Type 3)

Features

• Made from high strength stainless steel
• Internally polished
• Hard coating finish

The Lonex Ultimate AEG cylinders are designed to provide the best possible air compression and durability. Lonex recommends to pair your Lonex Cylidner with Lonex Cylinder head for best result. Steel Cylinders are made of true steel with treated surface to ensure low friction and maximum durability. The placement and size of the decompression holes are designed to provide maximum compression to increase performance.

Manufacturer: Lonex

Specifications:

Compatibility: For Tokyo Marui, G&P, Matrix and other compatible Standard Airsoft AEG Gearboxes
Material: Steel

Disclaimer: Recommended for users with Airsoft gearbox experience.
Note: Don't forget! When installing the cylinder, the ports should always face towards the spring guide!

What Are Type 0, 1, 2, and 3 cylinders?

• Type 0: Type 0 Cylinders are full volume cylinders that use all the amount of air in the cylinder to propel a BB forward. Works best with 363mm to 550mm inner barrel lengths as that amount of air will be needed to push bbs farther in Rifle and DMR-style builds.
• Type 1: Type 1 Cylinders are ported cylinders that are cut right at the edges of a cylinder to utilize a portion of the full amount of air volume. Works best with 318mm to 510mm inner barrel lengths for Carbine-like builds.
• Type 2: Type 2 Cylinders are ported cylinders that have inset cuts a third of the way into a cylinder to allow more air blow-off. Works best with 280mm to 430mm inner barrel lengths for PDW and CQB builds.
• Type 3: Type 3 Cylinders are ported cylinders that are cut at about the middle of the way into a cylinder to let half the overall air volume generated to be blown out. Works best with 45mm to 229mm inner barrel lengths for extremely short barrel builds and CQB oriented DSG builds.
