Perun V3 Hybrid Low Resistance MOSFET for Tokyo Marui Spec Version 3 AEG Gearboxes (Type: Universal Wiring)

Features

• Ultra compact MOSFET designed for Version 3 gearboxes
• Adjustable trigger sensitivity with 5 adjustable levels
• Programmable firing modes
• Active Braking for perfect shot management
• Precocking function for improved trigger response
• 2-stage trigger allows for extra tuning of the trigger functionality
• Binary trigger for faster semi-auto rate of fire
• Rate of fire reduction mode for increased realism
• Low battery voltage alarm helps protect your lithium battery packs
• Built-in diagnostic system helps monitor the rifle and MOSFET for easier troubleshooting
• Electronic fuse cuts off the battery circuit in case of malfunction, protecting the MOSFET and your rifle

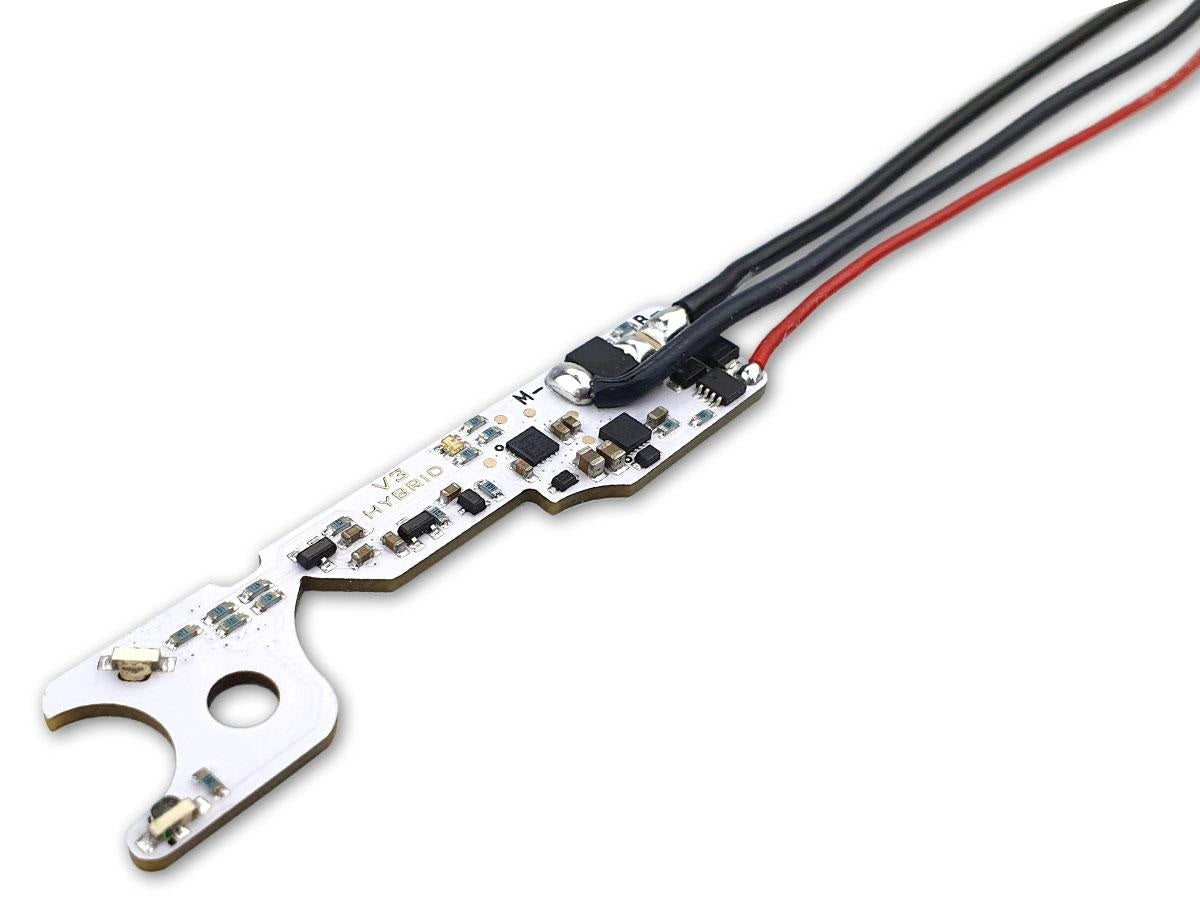

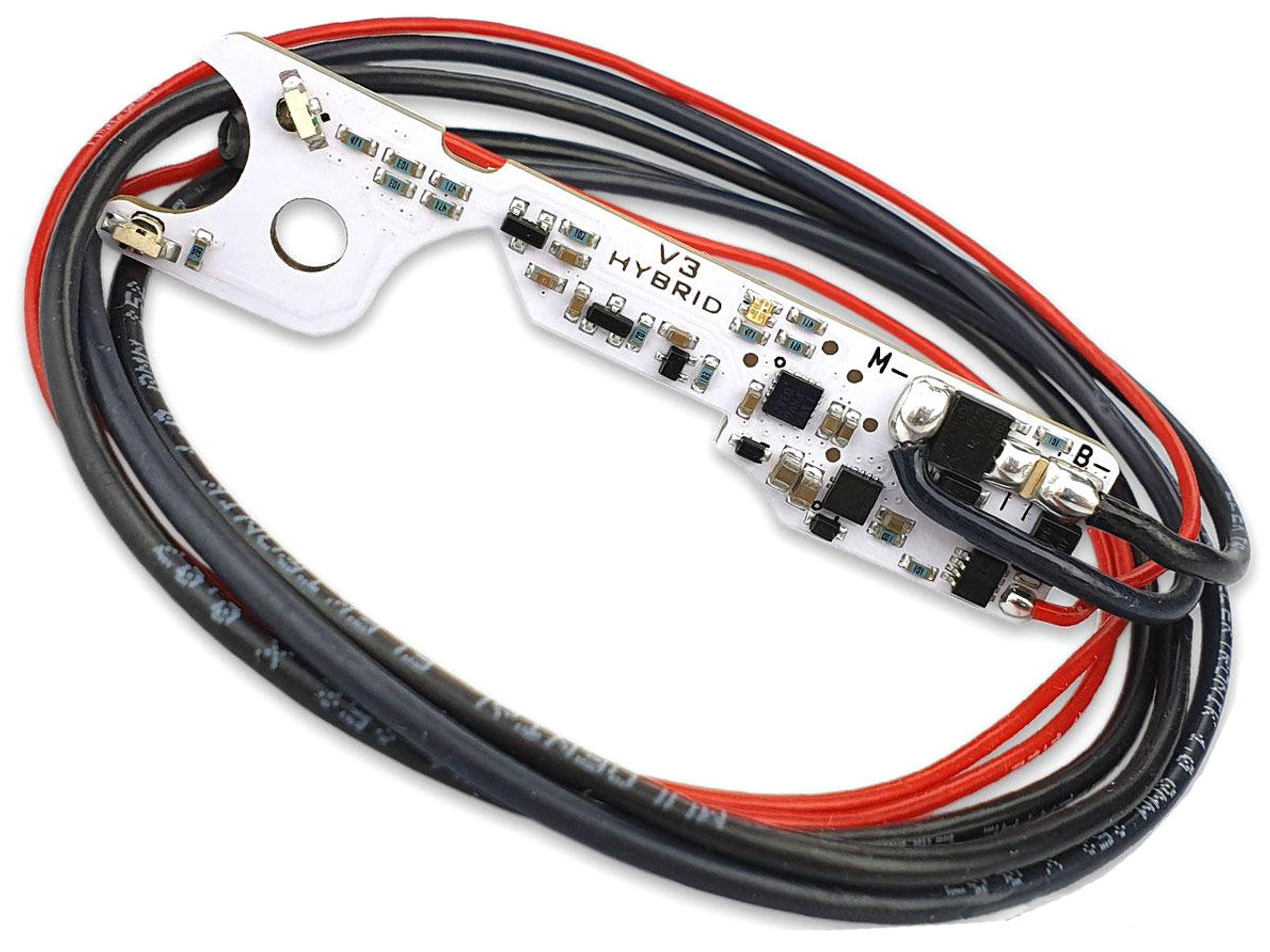

Perun V3 Hybrid replaces mechanical contacts in your airsoft replica or gel blaster and provides lots of useful features. Optical and magnetic sensors allow to eliminate many moving parts that are prone to damage, thus increasing the reliability. Adaptive trigger control allows switching from a very short trigger travel to a long one even in the field, with almost any trigger, including stock ones.Works without the need for any modification with most V3 gearboxes in Tokyo Marui standard. For details and exceptions please refer to the manual.

Adjustable trigger sensitivity
The trigger can be set to 5 sensitivity levels, ranging from very short pull needed to fire a shot, to a very long one. No modification to the trigger or the gearbox is needed and the trigger sensitivity change is possible even in the field.Independently programmed firing modes - Program the firing modes any way you like, setting safe, semi, burst or auto on both selector positions.

Active brake
Active brake stops the motor after each shot preventing spring compression or in case of replicas with high rate of fire, overspin (double shot problem).

Precocking
Fast trigger response can be a matter of victory or defeat, especially in CQB situations. With precocking enabled, piston will remain in rear position after each shot with the spring already compressed, ensuring that next shot will be fired immediately after you pull the trigger. To release the spring after using precocking, pull the trigger and hold it for 2 seconds, after which a second shot will be fired, this time with no precocking and fully braked.

2-stage trigger
Light trigger pull results with a single shot or burst, while a deeper pull will cause a burst or fully automatic fire. Following modes are available: semi burst, semi auto and burst auto.

Binary trigger
Allows for easy double shots in semi-automatic setting. After enabling this mode, if semi-automatic fire is set, shots will be fired not only when the trigger is pulled, but also when it is released.

Rate of fire reduction
Reduce the rate of fire in automatic or burst fire to save ammo or make the replica shoot in a more realistic fashion.

DMR modeIntroduces intervals between semiautomatic shots to comply with DMR rules on some fields.

Low battery voltage alarm
Dedicated for Li-Po and Li-Ion batteries. Should the battery voltage fall to a dangerously low level, user will be notified by short sound signals that are repeated every minute. This may also be freely switched on and off.

DSG
A sector gear detection mode specially prepared to work with dual sector gears.

Diagnostic system
Constantly monitors the replica and the mosfet itself. In case of any problems, immediately lets you know what it might be, making troubleshooting much easier.

Electronic fuse
Will save your replica and battery in case of a major malfunction. It will automatically disconnect the battery when a short circuit or blocked motor is detected.

Manufacturer: Perun Airsoft

Specifications:

Permissible Battery Voltage: 7V to 17V
Compatibility: For use with Tokyo Marui style Version 3 AEG gearboxes
Wiring: Universal-wired

About Perun MOSFETs

Perun was established in 2016 with the aim of designing and manufacturing MOSFET devices and other parts for AEGs. After years of designing and testing, we offer you products that will work reliably even in most extreme situations and enhance the capabilities of your replicas.All of our design work and most of the manufacturing is done in the European Union state of Poland. That allows us to reach our main goal - keep the highest quality possible. We are in constant contact with players, airsoft techs, shops and consult with them to ensure that our products satisfy their needs.
